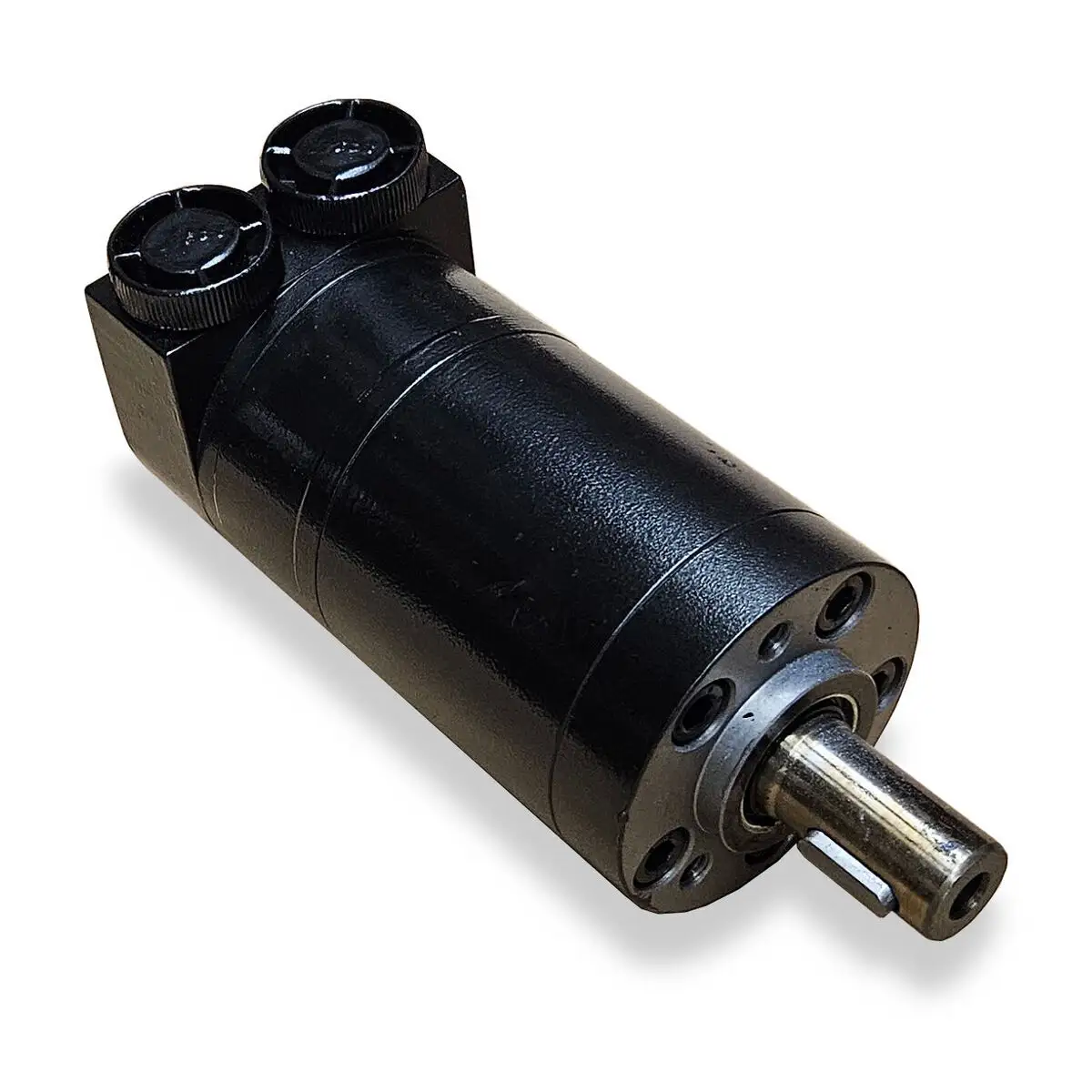

BMM/OMM Series with Side Oil Port Hydraulic Motor Orbital Motor For Danfoss

The BMM/OMM series orbital hydraulic motor is a micro shaft distribution motor that can be installed in a small space. It adopts integral rotary stator, 4/5 tooth structure, compact structure, light weight and high power density. Its characteristics:
The whole type of rotary stator adopts the world's most advanced processing technology to ensure the small size, high efficiency, high speed and long life.
The shaft seal can bear high pressure and can be used in series or in parallel.
Advanced structural design and high power density.
Product MOQ 100 PCS/order

Inquiry

Write a Review

This product is recognized as the foremost one compared to other products in the industry.

Description

1349273473027096577

The BMM/OMM gear set, shaft distribution fl ow, hydraulic motors are a compact, highly effi cient, low speed-high torque design which can be used in either parallel or series systems.

These ChangJia low weight advanced construction design motors are manufactured in accordance with the requirements of the European and American quality system.

BMM/OMM End Port Installation Data

BMM/OMM Side Port Installation Data

BMM Drive Shaft Data

Main Specification:

TYPE		BMM8	BMM12.5	BMM20	BMM32	BMM40	BMM50
Displacement		8.2	12.9	19.9	31.6	39.8	50.3
Speed（rpm）	Rated	1537	1256	814	513	452	358
	Continuous	1950	1550	1000	630	500	400
	Intermittent	2450	1940	1250	800	630	500
Torque（N.M）	Rated	8	13	19	31	37	33
	Continuous	11	16	25	40	45	46
	Intermittent	15	23	35	57	70	88
	Peak value	21	33	51	64	82	100
Power（KW）	Rated	1.3	1.7	1.7	1.7	1.7	1.2
	Continuous	1.8	2.4	2.4	2.4	2.2	1.8
	Intermittent	2.6	3.2	3.2	3.2	3.2	3.2
Pressure difference（MPA）	Rated	9	9	9	9	8.5	6
	Continuous	10	10	10	10	9	7
	Intermittent	14	14	14	14	14	14
	Peak value	20	20	20	16	16	16
Flow（L/min）	Rated	14	18	18	18	20	20
	Continuous	16	20	20	20	20	20
	Intermittent	20	25	25	25	25	25

Replaceable Orbital Motors Cross Reference Table

Chang Jia	DANFOSS	M+S	EATON	ROSS	WHITE	PARKER	SAM	BOSCH
HYDRAULIC	DANFOSS	HYDRAULIC	CHAR LYNN	TRW	CROSS	PARKER	BREVINI	RECROTH
BMM	OMM	MM MLHK	J SERIES				BGM	MGX
BM1/BMP	OMP DH	MP HP	H SERIES	MF MG	WP RS	TC TE TB	BG	MGP GXP
BM2/BMR	OMR DS OMEW	MR HR MLHRW,RW	S,T SERIES W SERIES	MB	WR RE	TF	BR	MGR GMR
BM4/BMH	OMH	MH MLHH HW HWF		ME	RE	TG
BM5/BMS	OMS	MS MSY MLHS	2000 SERIES	ME	RE	TG	HPR	MGS GMS
BM6/BMT	OMT TMT	MT MLHT MTM	6000 SERIES	MJ			HT	MGT,GMT
BMV/OMV	OMV	MV MLHV	10000 SERIES					MGV GMV

With great capacity, is able to shorten the development cycle of than other companies.
