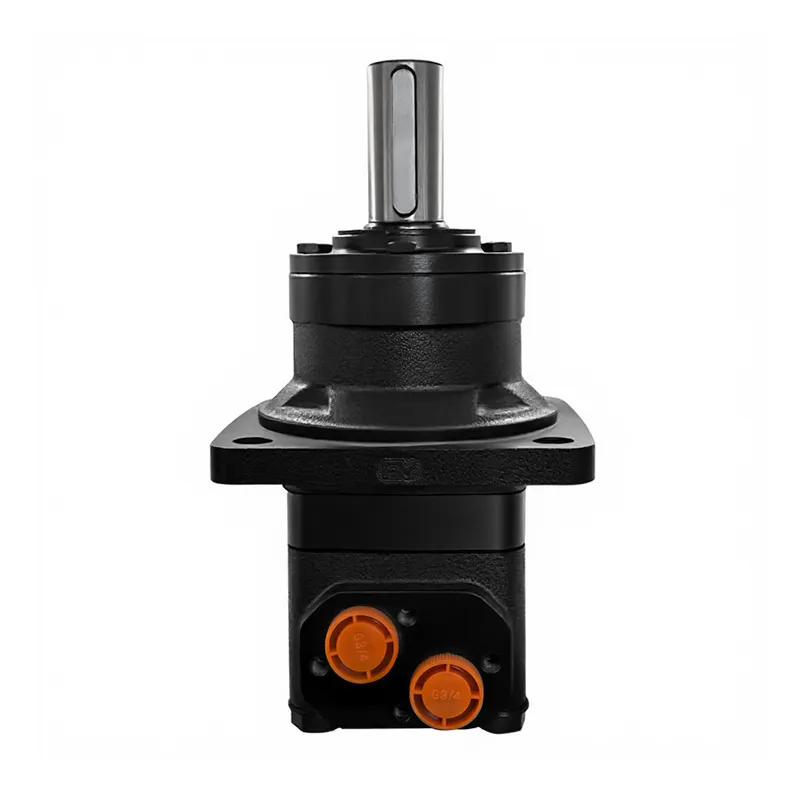

BMTW Series Hydraulic Orbital Motor 151b3034 11116527
Benefits:
1. Compactness: The wheel motor design allows it to be mounted directly inside or near the wheel, providing design flexibility for vehicles.
2. Efficiency: Advanced design ensures high volumetric efficiency through automatic wear compensation.
3. Durability: Robust construction and high-quality components provide long life even under extreme operating conditions.
4. Versatility: Can be used in both open and closed-loop hydraulic systems.
Product features
◉ Type: Hydraulic orbital motor, specifically a wheel drive model.
◉ Design: Features a gerotor gear set with a disc valve, known for high efficiency and smooth,stable operation.
◉ Performance: Delivers high torque at low speeds and can handle high pressure,with a long service life and high starting torque.
◉ Load capacity: Equipped with double taper roller bearings, allowing for high radial and axial loads, which is ideal for direct wheel drive applications.
◉ Application: Primarily used in heavy-duty applications such as construction equipment, agricultural machinery, and self-propelled vehicles where a compact,integrated wheel motor is needed.
Product Drawing
Specifications
|
Type |
BMTW |
BMTW |
BMTW |
BMTW |
BMTW |
BMTW |
BMTW |
BMTW |
BMTW |
|
|
displacement (cm3/rev) |
161.1 |
201.4 |
232.5 |
251.8 |
326.3 |
410.9 |
523.6 |
629.1 |
801.8 |
|
|
Max.speed (rpm) |
cont. |
625 |
625 |
536 |
500 |
380 |
305 |
240 |
196 |
154 |
|
int. |
780 |
750 |
643 |
600 |
460 |
365 |
285 |
233 |
185 |
|
|
Max.torque (Nm) |
cont. |
470 |
590 |
670 |
730 |
950 |
1080 |
1220 |
1318 |
1464 |
|
int. |
560 |
710 |
821 |
880 |
1140 |
1260 |
1370 |
1498 |
1520 |
|
|
peak |
669 |
838 |
958 |
1036 |
1346.3 |
1450.3 |
1643.8 |
1618.8 |
1665 |
|
|
Max.output (KW) |
cont. |
27.7 |
34.9 |
34.7 |
34.5 |
34.9 |
31.2 |
28.8 |
25.3 |
22.2 |
|
int. |
32 |
40 |
40 |
40 |
40 |
35 |
35 |
27.5 |
26.8 |
|
|
Max.pressure drop (MPa) |
cont. |
20 |
20 |
20 |
20 |
20 |
18 |
16 |
14 |
12.5 |
|
int. |
24 |
24 |
24 |
24 |
24 |
21 |
18 |
16 |
13 |
|
|
peak |
28 |
28 |
28 |
28 |
28 |
24 |
21 |
19 |
16 |
|
|
Max.flow (L/min) |
rated |
80 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
cont. |
100 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
|
|
int. |
125 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
|
|
Max.inlett pressure (Mpa) |
cont. |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
|
int. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
peak |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
|
Weight (kg) |
19.5 |
20 |
20.4 |
20.5 |
21 |
22 |
23 |
24 |
25 |
|
