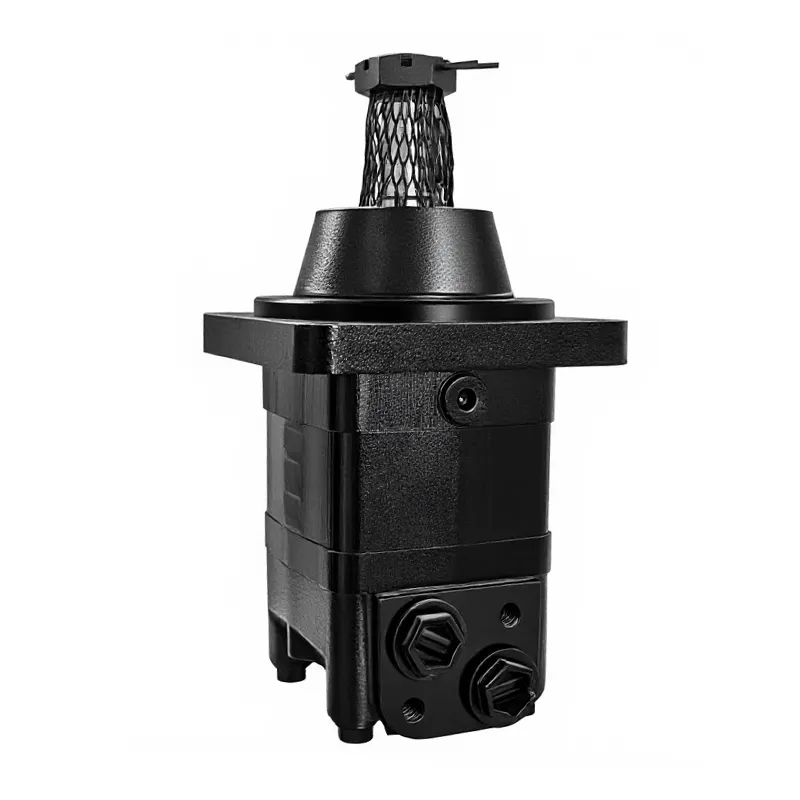

Hydraulic Wheel Motor BMSW For Wheel Machines
BMSW hydraulic motor is one type of high torque, low-speed hydraulic motor, with high efficiency and long life. BMSW motor has a wide Speed range, high starting torque, and is rotating stably at high speed. Compact and light, it can be connected to a working machine directly, adapted to all kinds of low-speed heavy load facilities.
Product features
◉ Wheel Motor BMSW Same Than OMSW and M+S MSW Series.
◉ Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
◉ The output shat adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
◉ Advanced design in disc distribution flow ,which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
◉ The new series motor is suitable for vehicles with greater loads and pressure drop.
Product Drawing
|
Catalogue Number |
L |
L1 |
B |
|
|
mm |
mm |
mm |
|
BMSW80 |
127.5 |
83.0 |
11.0 |
|
BMSW100 |
131.0 |
86.5 |
14.5 |
|
BMSW125 |
135.5 |
91.0 |
19.0 |
|
BMSW160 |
141.5 |
97.0 |
25.0 |
|
BMSW200 |
148.5 |
104.0 |
32.0 |
|
BMSW250 |
157.5 |
113.0 |
41.0 |
|
BMSW315 |
169.5 |
125.0 |
53.0 |
|
BMSW400 |
183.5 |
139.0 |
67.0 |
|
BMSW500 |
196.5 |
152.0 |
80.0 |
Specifications
|
TYPE |
BMSW |
BMSW |
BMSW |
BMSW |
BMSW |
BMSW |
BMSW |
BMSW |
BMSW |
|
|
(ml/r)Displacement |
80.5 |
100.5 |
126.3 |
160.8 |
200.9 |
252.6 |
321.5 |
401.9 |
471.1 |
|
|
Max.Pressure. Drop(Mpa) |
cont. |
17.5 |
17.5 |
17.5 |
16 |
16 |
12.5 |
12.5 |
10 |
10 |
|
int. |
20 |
20 |
20 |
20 |
20 |
16 |
16 |
14 |
14 |
|
|
peak. |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
20 |
17.5 |
17.5 |
|
|
Max.Torque (N.m) |
cont. |
194 |
242 |
303 |
358 |
438 |
440 |
551 |
560 |
636 |
|
int. |
218 |
283 |
345 |
429 |
540 |
580 |
625 |
687 |
890 |
|
|
peak. |
271 |
318 |
373 |
459 |
576 |
700 |
831 |
865 |
1113 |
|
|
(Speed.Range (cont.) (r/min) |
10-810 |
10-750 |
9-600 |
7-470 |
6-375 |
6-300 |
5-240 |
5-180 |
5-155 |
|
|
(Max.Flow (cont.) (L/min) |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Max.Output.Power (cont.) (Kw) |
14 |
16 |
16 |
14 |
14 |
11 |
10 |
8 |
8 |
|
|
Weight (kg) |
9.8 |
10.0 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
13.1 |
14 |
|
Applications
Hydraulic Wheel Motor BMSW Series used for
◉ Hydraulic drive systems of mine construction machinery
◉ Transporting equipment
◉ Agricultural and forest machinery
◉ Special vehicles
◉ Wheel traveling equipment
◉ Driving tracks of rotating mechanisms
