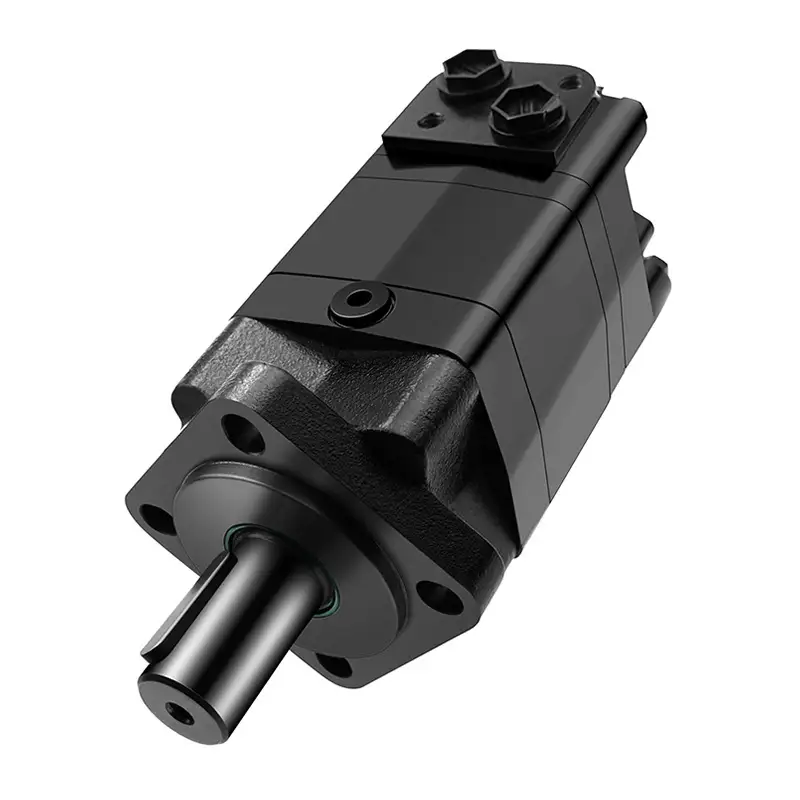

OMS/BMS Series Hydraulic Motor For Danfoss Series
OMS/BMS new series motor adapt the advance Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multi-function in accordance with requirement of applications.It can be widely applied to construction machinery.
| Mounting Flange(MM) | 82.5 | Shaft end thread | M8 |
| Shaft(MM) | 32 | Mounting holes | 4 |
| Port Size | G1/2 | Parallel key width（MM） | 10 |
| Drain Port | G1/4 |
Application Areas
Product features
◉ Advanced manufacturing devices for the geroler gear set, which use low pressure of start-up. provide smooth and reliable operation and high efficiency.
◉ The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case offer capacities of high pressure and high torque in the wide of applications.
◉ Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
◉ The new series motor is suitable for vehicles with greater loads and pressure drop.
Specifications
|
Type |
BMS 80 |
BMS 100 |
BMS 125 |
BMS 160 |
BMS 200 |
BMS 250 |
BMS 315 |
BMS 400 |
BMS 495 |
|
|
Geometric displacement (cm3/rev.) |
80.6 |
100.8 |
125 |
154 |
194 |
243 |
311 |
394 |
495 |
|
|
Max.speed(rpm) |
rated |
675 |
540 |
432 |
337 |
270 |
216 |
171 |
135 |
110 |
|
con |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
185 |
155 |
|
|
int |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
225 |
185 |
|
|
Max.torque(N.m) |
rated |
175 |
220 |
273 |
445 |
505 |
620 |
700 |
765 |
780 |
|
con |
225 |
290 |
365 |
485 |
586 |
708 |
880 |
880 |
910 |
|
|
int |
305 |
390 |
480 |
590 |
705 |
860 |
1000 |
980 |
990 |
|
|
Max.output(KW) |
rated |
12 |
12.4 |
12.4 |
12.4 |
12.4 |
12.4 |
11.2 |
9.6 |
8.6 |
|
con |
16 |
18 |
18 |
18.1 |
18.1 |
18 |
17 |
11 |
9 |
|
|
int |
20 |
22 |
23 |
25 |
24 |
23.8 |
20.2 |
12 |
11 |
|
|
Max.pressure (Mpa) |
rated |
16 |
16 |
16 |
19 |
19 |
18 |
16 |
14 |
12 |
|
con |
20.5 |
20.5 |
20.5 |
21 |
21 |
20 |
20 |
16 |
14 |
|
|
int |
27.5 |
27.5 |
27.5 |
26 |
25 |
25 |
24 |
19 |
15 |
|
|
Peak |
29.5 |
29.5 |
29.5 |
28 |
27 |
27 |
26 |
21 |
17.5 |
|
|
Max.inlet(L/min) |
con |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
int |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
|
|
rated |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
|
|
Max.inlet pressure (MPa) |
con |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
int |
30 |
303 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
|
Weight(kg) |
|
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
13.2 |
14.3 |
