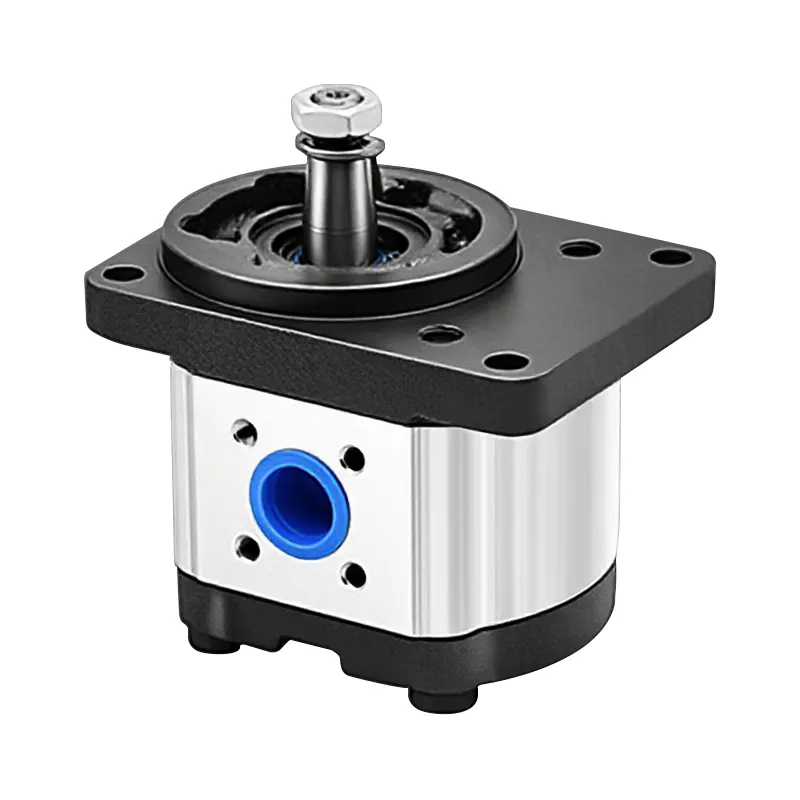

Hydraulic Gear Pump 0510425009 13300280
Built with high-quality material, resistant to shock and wear in harsh conditions.
|
Max.intermittent pressure [bar] |
280.0 |
|
Maximum rotational speed [rpm] |
3500.0 |
|
Sealing material |
NBR |
|
Weight [kg] |
3.4 |
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
◉ High Efficiency: Nice design, reducing energy waste and operational costs.
◉ Durability: Built with high-quality material, resistant to shock and wear in harsh conditions.
◉ Low Noise: Integrated noise-dampening chambers ensure quieter operation compared to conventional pumps.
Specifications
| Main Performance Parameters | |||
| Max. flow [l/min] | 28.0 | Product | External gear unit |
| Nominal size [cm³/rev] | 8.0 | Function | Pump |
| Max.intermittent pressure [bar] | 280.0 | Model | High perf (F) (4..28 cm³/rev) |
| Maximum rotational speed [rpm] | 3500.0 | Series | Bearing diameter 18 mm |
| Drive shaft | Tapered keyed 1:5 | Version | Phosphated, aligned covers |
| Direction of rotation | Clockwise rotation | Port connection | Square flange (German version) |
| Front cover | Rect. flange dia. 80 mm | Sealing material | NBR |
| Housing material | Aluminum | Rear cover | Standard (cast iron) |
| Noise level | Standard noise level | Weight [kg] | 3.4 |
OEM number
31075/211318/522279/13300280/0510425009
Product application
HATSUTA Colúmbia
Warranty
12 months warranty
