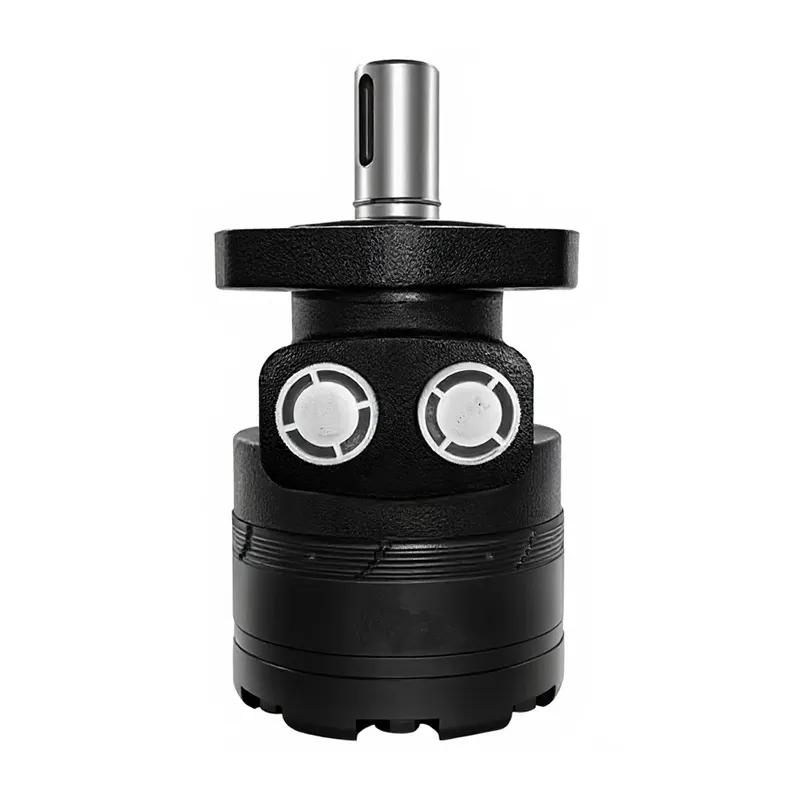

BMER2 Hydraulic Motors
Product features
◉ Advanced manufacturing devices for the Geroler gear set, which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
◉ The output shaft adapts in needle roller bearings that permit high axial and radial forces.
The case can offers capacities of high pressure and high torque in the wide of applications.
◉ Advanced design in high speed distribution flow, which can automatically compensate in
operating with high volume efficiency and long life , provide smooth and reliable operation.
◉ Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than
shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
Bmer-2 dimensions mounting data
|
Displacement(cm/rev.) |
125 |
160 |
200 |
230 |
250 |
300 |
350 |
375 |
400 |
475 |
540 |
650 |
750 |
|
L1(mm) |
10.2 |
13.5 |
17 |
19.5 |
22 |
25.4 |
29.5 |
31.8 |
35.5 |
39.4 |
47.3 |
57 |
63.5 |
|
L(mm) |
157 |
160 |
163.5 |
166 |
168.5 |
172 |
176 |
178.5 |
182 |
186 |
194 |
204 |
210 |
|
Weight(kg) |
10.6 |
10.9 |
11.2 |
11.3 |
11.4 |
11.6 |
12 |
12.5 |
12.7 |
13 |
13.5 |
14.5 |
15 |
Specifications
|
Type |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
BMER |
|
|
Geometric displacement (cm3/rev.) |
118 |
156 |
196 |
228 |
257 |
296 |
345 |
371 |
405 |
462 |
540 |
647 |
745 |
|
|
Max. speed (rpm) |
cont. |
360 |
375 |
330 |
290 |
290 |
250 |
220 |
200 |
185 |
160 |
140 |
115 |
100 |
|
int. |
490 |
470 |
425 |
365 |
350 |
315 |
270 |
240 |
220 |
195 |
170 |
138 |
120 |
|
|
Max. torque (N ·m) |
cont. |
325 |
450 |
530 |
625 |
700 |
810 |
905 |
990 |
1010 |
1085 |
980 |
1015 |
1050 |
|
int. |
380 |
525 |
600 |
710 |
790 |
930 |
1035 |
1140 |
1180 |
1180 |
1240 |
1250 |
1180 |
|
|
peak |
450 |
590 |
750 |
870 |
980 |
1120 |
1285 |
1360 |
1360 |
1260 |
1380 |
1380 |
1370 |
|
|
Max. output (kW) |
cont. |
12.0 |
15.0 |
15.5 |
16.0 |
17.5 |
18.0 |
17.5 |
16.5 |
15.5 |
14.5 |
11.5 |
10.0 |
8.0 |
|
int. |
14.0 |
17.5 |
18.0 |
19.0 |
20.0 |
21.0 |
20.0 |
19.0 |
18.0 |
16.5 |
15.0 |
12.0 |
10.0 |
|
|
Max. pressure drop (MPa) |
cont. |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
19 |
17.5 |
14 |
12 |
10.5 |
|
int. |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
22.5 |
19 |
17.5 |
15.5 |
12 |
|
|
peak |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
25 |
20.5 |
20.5 |
17.5 |
14 |
|
|
Max.flow (L/min) |
cont. |
45 |
60 |
70 |
70 |
75 |
80 |
80 |
75 |
75 |
75 |
75 |
75 |
75 |
|
int. |
60 |
75 |
85 |
85 |
90 |
95 |
95 |
90 |
90 |
90 |
90 |
90 |
90 |
|
BMER-2 SHAFT EXTENSIONS DIMENSIONS DATA
