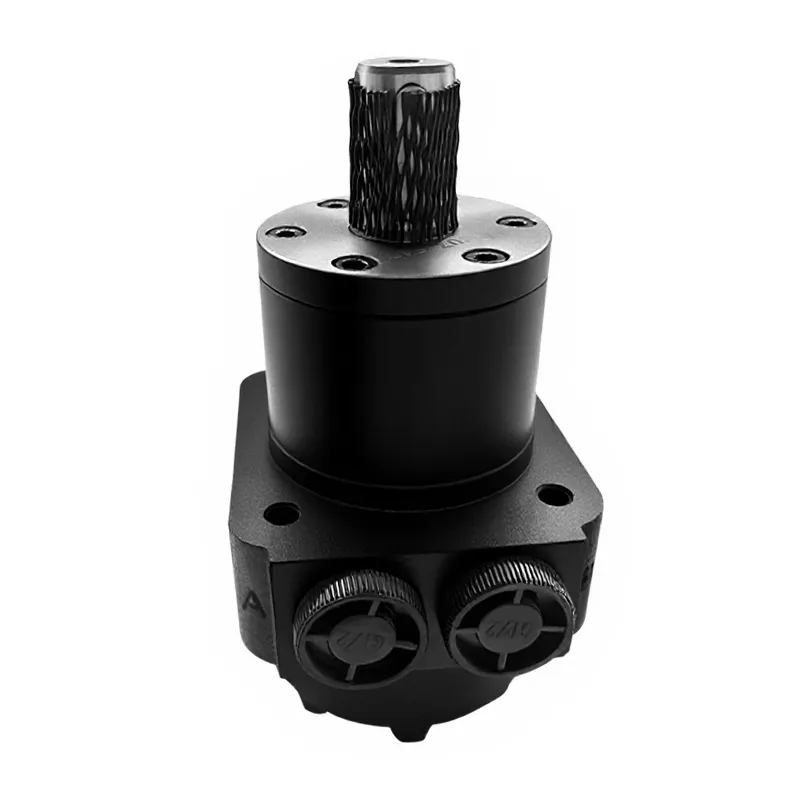

Hydraulic Wheel Motor BMPW
The BMPH Gerotor gear set, shaft distribution flow, and hydraulic motors are a compact, highly efficient, low-speed-high-torque design that can be used in either parallel or series systems.
Product features
◉ Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
◉ Shaft seal can bear high pressure of motor of which can be used in parallel or series.
◉ Advanced construction design, high power and low weight.
Product Drawing
Specifications
Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
|
Type |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
BMPW |
|
|
Geometric displacement (cm3/rev.) |
36 |
51.7 |
77.7 |
96.2 |
120.2 |
157.2 |
194.5 |
240.3 |
314.5 |
389.5 |
486.5 |
|
|
Max. speed (rpm) |
cont. |
1500 |
1150 |
770 |
615 |
490 |
383 |
310 |
250 |
192 |
155 |
120 |
|
int. |
1650 |
1450 |
960 |
770 |
615 |
475 |
385 |
310 |
240 |
190 |
150 |
|
|
Max. torque (N ·m) |
cont. |
55 |
100 |
146 |
182 |
236 |
302 |
360 |
380 |
375 |
360 |
385 |
|
int. |
76 |
128 |
186 |
227 |
290 |
370 |
440 |
460 |
555 |
525 |
560 |
|
|
peak |
96 |
148 |
218 |
264 |
360 |
434 |
540 |
550 |
650 |
680 |
680 |
|
|
Max. output (kW) |
cont. |
8.0 |
10.0 |
10.0 |
11.0 |
10.0 |
10.0 |
10.0 |
8.5 |
7.0 |
6.0 |
5.0 |
|
int. |
11.5 |
12.0 |
12.0 |
13.0 |
12.0 |
12.0 |
12.0 |
10.5 |
8.5 |
7.0 |
6.0 |
|
|
Max. pressure drop (MPa) |
cont. |
12.5 |
14 |
14 |
14 |
14 |
14 |
14 |
11 |
9 |
7 |
6 |
|
int. |
16.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
14 |
14 |
10.5 |
9 |
|
|
peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
18 |
16 |
14 |
12 |
|
|
Max. flow (L/min) |
cont. |
55 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
int. |
60 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Weight (kg) |
5.6 |
5.6 |
5.7 |
5.9 |
6.0 |
6.2 |
6.4 |
7 |
6.9 |
7.4 |
8.0 |
|
Bmpw dimensions and mounting data
|
Mounting |
Code |
G(depth) |
S(depth) |
M(depth) |
|
P(A,B) |
G1/2(15) |
7/8-14 O-ring(17) |
M22*1.5(15) |
|
|
T |
G1/4(12) |
7/16-20UNF (12) |
M14*1.5(12) |
|
|
C |
4*M10(20) |
4*3/8-16UNC(20) |
4*M10(20) |
|
