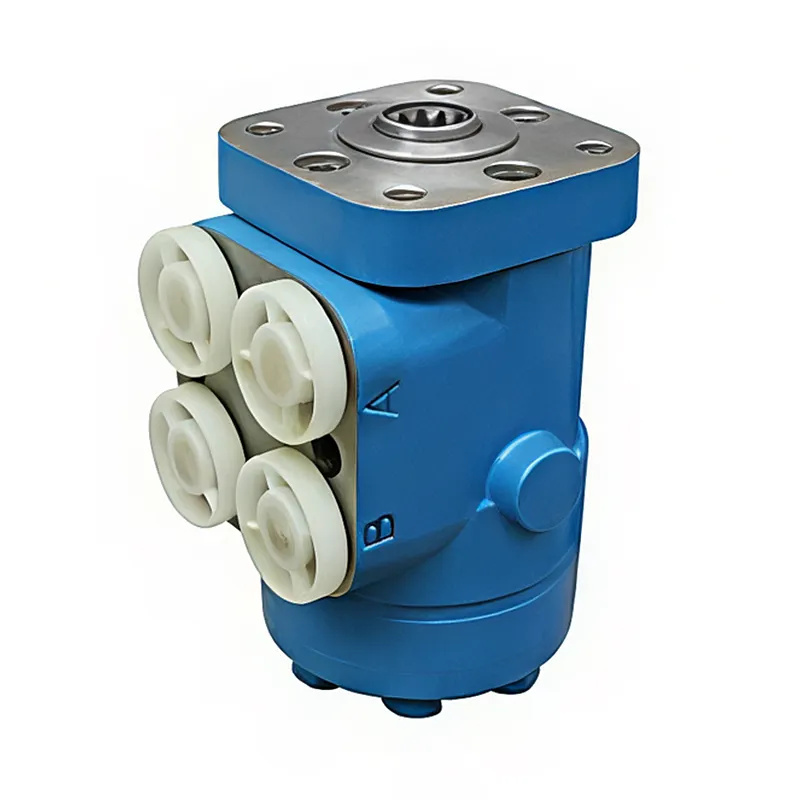

BZZ Hydraulic Steering Unit
Excellent Product Features:
1. The steering load does not act directly on the steering wheel, comfortable operation.
2. Low steering torque, the steering wheel can be continuously free steering.
3. Product specifications, a wide displacement range, from 50 ~ 1250 mlr, able to adapt to a variety of different needs.
4. The system needs different functions that can be connected to the valve block and pressure levels.
Product features
◉ Adopting integral structure, beautiful appearance and reliable performance
◉ High-precision processing ensures accurate dimensions and tight installation
◉ Reliable quality, faster response speed, and more stable frequency of use
◉ Durable and Reliable: Quality controlled to ensure long operation and low maintenance costs.
◉ Easy Operation: Installation and use are quick and easy, making it suitable for a variety of users.
Product Drawing
Technical data
BZZ Hydraulic Steering Control Unit Parameter
|
TYPE |
Displacement |
Rated Flow |
Max input |
Max Cont Back |
Normal Input |
Length |
|
Pressure |
Pressure |
Torque |
||||
|
BZZ1/2/3-50 |
50 |
5 |
17.5 |
2.5 |
<2.5 |
140 |
|
BZZ1/2/3-63 |
63 |
6 |
17.5 |
2.5 |
<2.5 |
141 |
|
BZZ1/2/3-80 |
80 |
8 |
17.5 |
2.5 |
<2.5 |
142 |
|
BZZ1/2/3-100 |
100 |
10 |
17.5 |
2.5 |
<2.5 |
145 |
|
BZZ1/2/3-125 |
125 |
13 |
17.5 |
2.5 |
<2.5 |
148 |
|
BZZ1/2/3-160 |
160 |
16 |
17.5 |
2.5 |
<2.5 |
153 |
|
BZZ1/2/3-200 |
200 |
20 |
17.5 |
2.5 |
<3 |
158 |
|
BZZ1/3-250 |
250 |
25 |
17.5 |
2.5 |
<3 |
164 |
|
BZZ1/3-280 |
280 |
28 |
17.5 |
2.5 |
<3 |
169 |
|
BZZ1/3-315 |
315 |
32 |
17.5 |
2.5 |
<3 |
174 |
|
BZZ1/3-400 |
400 |
40 |
17.5 |
2.5 |
<3 |
184 |
|
BZZ1/3-500 |
500 |
50 |
17.5 |
2.5 |
<5 |
197 |
|
BZZ1/3-630 |
630 |
60 |
16.0 |
2.5 |
<5 |
216 |
|
BZZ1/3-800 |
800 |
75 |
16.0 |
2.5 |
<5 |
236 |
|
BZZ1/3-1000 |
1000 |
75 |
16.0 |
2.5 |
<5 |
262 |
