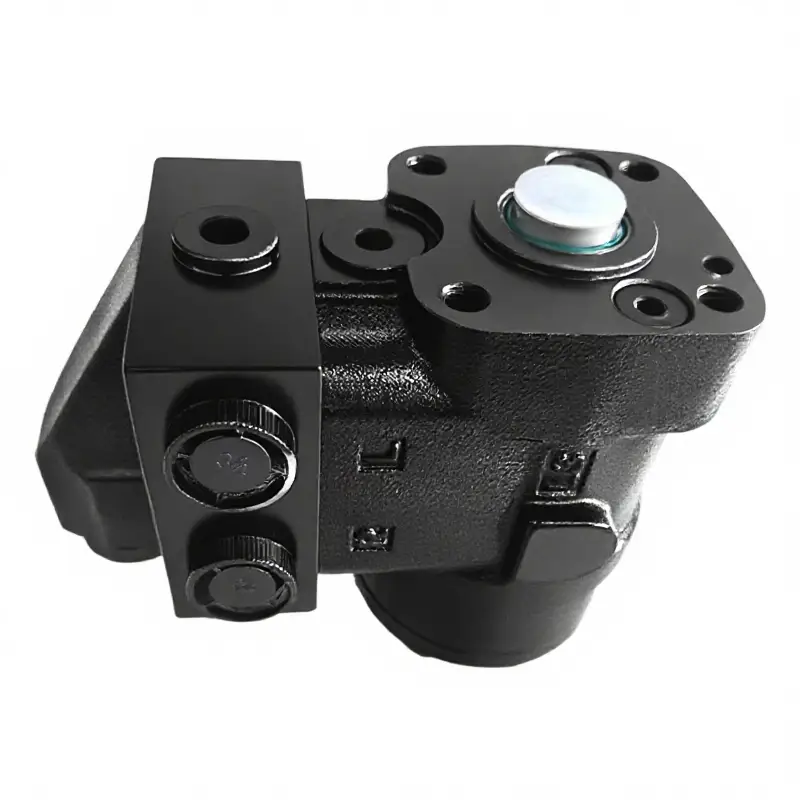

Danfoss OSPC hydraulic steering units with PV80 Priority valve
Features:
1. Low noise during operation
2. Good steering controlability
3. High back pressure
Product features
◉ Low noise during operation, improving operating comfort.
◉ Good steering controlability
◉ Low steering torque 0.8 to 3.0 N
◉ High back pressure possible up to 40bar
◉ One or several built in valve functions possible: pressure relief, shock and suction in L + R, check valve in P and in LS
Product Drawing
Technical data
OSPC ON and OSPC OR Size
|
TYPE |
L1 |
L2 |
||
|
mm |
[in] |
mm |
[in] |
|
|
OSPC 40 |
126 |
[4.96] |
6.5 |
[0.26] |
|
OSPC 50 |
126 |
[4.96] |
6.5 |
[0.26] |
|
OSPC 60 |
128 |
[5.04] |
9.1 |
[0.36] |
|
OSPC 70 |
128 |
[5.04] |
9.1 |
[0.36] |
|
OSPC 80 |
129 |
[5.08] |
10.4 |
[0.41] |
|
OSPC 100 |
132 |
[5.20] |
13.0 |
[0.51] |
|
OSPC 125 |
135 |
[5.31] |
16.2 |
[0.64] |
|
OSPC 160 |
140 |
[5.51] |
20.8 |
[0.82] |
|
OSPC 185 |
143 |
[5.63] |
24.0 |
[0.94] |
|
OSPC 200 |
145 |
[5.71] |
26.0 |
[1.02] |
|
OSPC 230 |
149 |
[5.87] |
29.9 |
[1.18] |
|
OSPC 250 |
151 |
[5.94] |
32.5 |
[1.28] |
|
OSPC 315 |
160 |
[6.30] |
40.9 |
[1.61] |
|
OSPC 400 |
171 |
[6.73] |
52.0 |
[2.05] |
|
OSPC 500 |
184 |
[7.24] |
65.0 |
[2.56] |
Application
