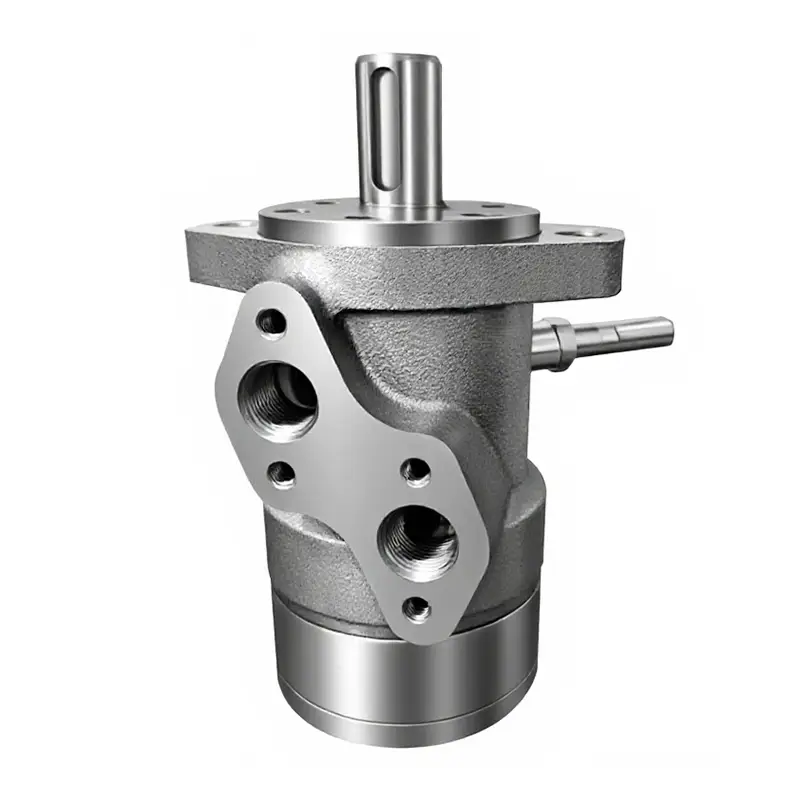

BMP-160 motor with sensor
BMP 160 - hydraulic motors from the BMP series with rotation speeds up to 463 rpm.
The BMP series is a compact and reliable gyro motor. They are used in various types of mobile equipment, as well as in industry, where compact dimensions and high torque indicators are required. They are analogues of hydraulic motors: OMP (Sauer Danfoss), OP (Meta), CPM (Hydromot), MP (M+S Hydraulic). Operating temperature range: -30°C to +90°C.
Product features
◉ Constant torque throughout the entire speed range
◉ High breakaway moment
◉ No external drain line
◉ Long service life under extreme conditions
◉ High strength and specific weight and size indicators
◉ Resistance to axial and radial loads
◉ They are used in hydraulic systems with both open and closed circuits of working fluid flows.
Product Drawing
Specifications
Technical data for BMP with 31.75 and 32 shaft
|
Type |
BMP36 |
BMP50 |
BMP80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
|
Geometric displacement |
36 |
51.7 |
77.7 |
96.2 |
120.2 |
157.2 |
194.5 |
240.3 |
314.5 |
389.5 |
486.5 |
|
|
Max. speed (rpm) |
Cont. |
1500 |
1150 |
770 |
615 |
490 |
383 |
310 |
250 |
192 |
155 |
120 |
|
int. |
1650 |
1450 |
960 |
770 |
615 |
475 |
385 |
310 |
240 |
190 |
150 |
|
|
Max. torque (N ·m) |
Cont. |
55 |
100 |
146 |
182 |
236 |
302 |
360 |
460 |
475 |
490 |
430 |
|
int. |
76 |
128 |
186 |
227 |
290 |
370 |
440 |
570 |
555 |
580 |
560 |
|
|
peak |
96 |
148 |
218 |
264 |
360 |
434 |
540 |
670 |
840 |
840 |
780 |
|
|
Max. output (KW) |
cont |
8 |
10 |
10 |
11 |
10 |
10 |
10 |
8.5 |
7 |
6 |
6 |
|
int. |
11.5 |
12 |
12 |
13 |
12 |
12 |
12 |
10.5 |
8.5 |
7 |
7 |
|
|
Max. pressure drop (MPa) |
Cont. |
12.5 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
12 |
9.5 |
7 |
|
int. |
16.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
14 |
11.5 |
9 |
|
|
peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
18 |
13 |
|
|
Max. flow (L/min) |
Cont. |
55 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
int. |
60 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Weight (kg) |
5.6 |
6 |
5.7 |
5.9 |
6 |
6.2 |
6.4 |
7 |
6.9 |
7.4 |
8 |
|
|
Applications |
|
Skid-steer attachments Swing motors Brush cutters |
|
Mowers Harvesting equipment |
|
Directional boring Winch Auger |
