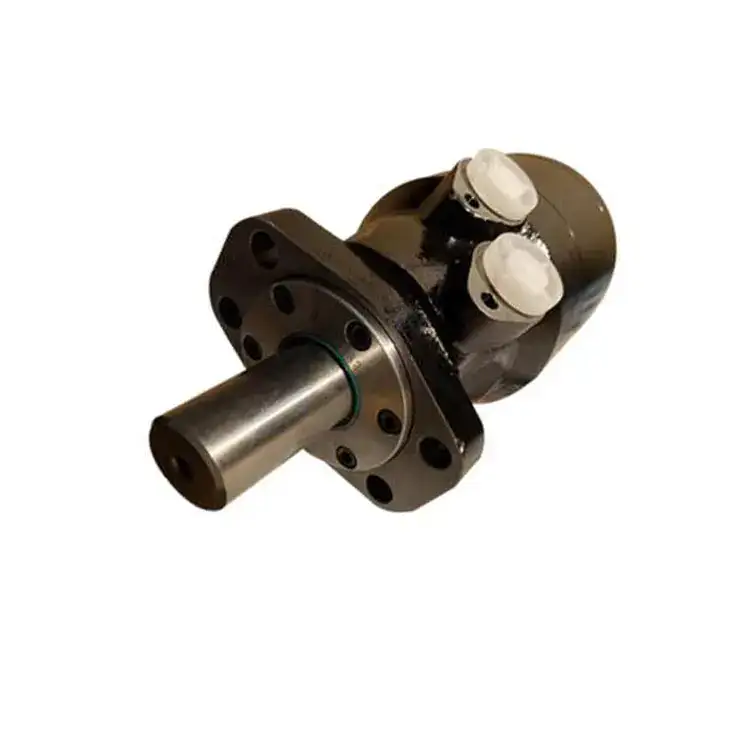

The BMH/OMH Hydraulic Orbital motor Product details
Characteristics:
Double bearing support for large radial forces.
The design of the insert and pinion stator is low, the starting pressure is low, the efficiency is high, and the retainability is good.
Reliable shaft seal design with high back pressure and can be used in series and parallel.
The forward and reverse conversion is convenient and the rotation speed is stable.
The special design of the linkage shaft has a long service life.
The motor is compact and easy to install.
Main Specification
Displacement（ml/r） | 245 | 310 | 395 | 490 | 625 | 800 | |
Flow（LPM） | Continuous | 80 | 80 | 80 | 80 | 80 | 80 |
Intermittent | 100 | 100 | 100 | 100 | 100 | 100 | |
Speed（RPM） | Continuous | 320 | 250 | 200 | 156 | 120 | 100 |
Intermittent | 390 | 300 | 240 | 200 | 150 | 120 | |
Pressure（MPA） | Continuous | 14 | 14 | 14 | 14 | 12.5 | 10 |
Intermittent | 15 | 15 | 15 | 15 | 12.5 | 10 | |
Turque（N.M） | Continuous | 435 | 554 | 697 | 870 | 998 | 1023 |
Intermittent | 502 | 663 | 798 | 1056 | 1178 | 1379 | |
Note:
1.Continuous Date: The Max. Value of operation motor continuously.
2.Intermittent Data: The Max. Value of operation motor in 6 seconds per minutes.
3.A simultaneous max ,RPM and max pressure is not recommended.
4.The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation.
MOUNTING DRAWING:
This product guarantees stable performance and long service life.
