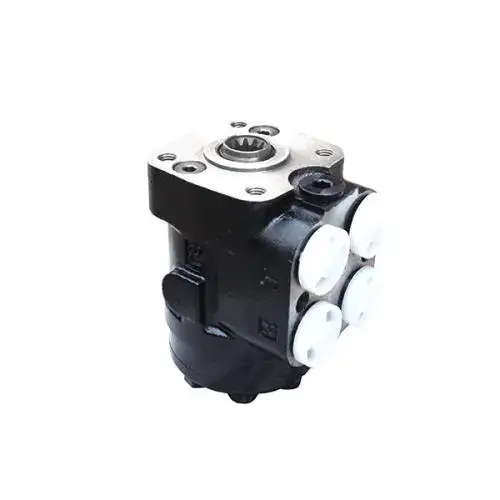

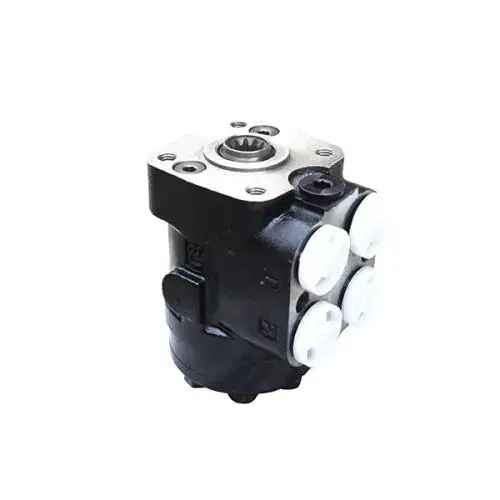

101S/OSPC Series Hydraulic Steering Unit
- Load sensing hydraulic steering control unit is an important element in the load sensing steering system. Together with fixed displacement pump, various displacement pump with constant pressure or load sensing pump(variable displacement pump with flow, pressure joint compensated) supplying oil, it can make up different loading sensing hydraulic steering systems. BPBS5 series can be used together with modulary mounting priority valve.
- BPBS5 series can be used together with modulary mounting priority valve.
- BPBS5 series can be used together with modulary mounting priority valve.
- Product MOQ 100 PCS/order
The raw material suppliers of have undergone rigorous screening.
Description
Introduction
Load sensing hydraulic steering control unit is an important element in the load sensing steering system. Together with fixed displacement pump, various displacement pump with constant pressure or load sensing pump(variable displacement pump with flow, pressure joint compensated) supplying oil, it can make up different loading sensing hydraulic steering systems. BPBS5 series can be used together with modulary mounting priority valve.
101S/OSP TECHNICAL DATA
|
TYPE | Displacement
(ml/r) | Max. input speed
(rpm) | Max.input Pressure (Mpa) | Max. cont. Back. Pressure (Mpa) | LS Safety valve pressure (MPa) | Overload valve pressure (MPa) | Length
(mm) | Weight
(kg) |
| 101S-50 | 50 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 131 | 5.4 |
| 101S-63 | 63 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 133 | 5.5 |
| 101S-80 | 80 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 135 | 5.6 |
| 101S-100 | 100 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 138 | 5.7 |
| 101S-125 | 125 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 141 | 5.9 |
| 101S-160 | 160 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 146 | 6.0 |
| 101S-200 | 200 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 151 | 6.2 |
| 101S-250 | 250 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 157 | 6.5 |
| 101S-280 | 280 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 162 | 6.6 |
| 101S-315 | 315 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 167 | 6.9 |
| 101S-400 | 400 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 177 | 7.2 |
DIMENSION AND MOUNTING DATA：
