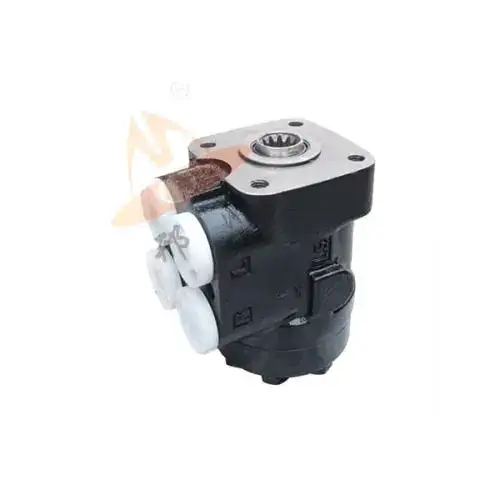

101 Series Hydraulic Steering unit
- 101 series hydraulic steering unit inherits the steering function of BZZ from structure to principle.
- The main features of this series of steering gear are that safety valve, two-way overload valve, two-way refueling valve and one-way inlet valve are all integrated into the steering gear housing, no need to connect the valve blocks, more convenient to use, and the connection size conforms to international standards.
- Product MOQ 100 PCS/order
The material of is exported from abroad and its quality is superior.
101 series hydraulic steering unit inherits the steering function of BZZ from structure to principle. The main features of this series of steering gear are that safety valve, two-way overload valve, two-way refueling valve and one-way inlet valve are all integrated into the steering gear housing, no need to connect the valve blocks, more convenient to use, and the connection size conforms to international standards.
Connection dimension
101 TECHNICAL DATA
| TYPE | Displacement (ml/r) | Max.input speed (rpm) | Max.input Pressure (Mpa) | Max.cont.Back. Pressure (Mpa) | Length (mm) | Weight (kg) |
| 101-50 | 50 | 100 | 17.5 | 2.5 | 131 | 5.4 |
| 101-63 | 63 | 100 | 17.5 | 2.5 | 133 | 5.5 |
| 101-80 | 80 | 100 | 17.5 | 2.5 | 135 | 5.6 |
| 101-100 | 100 | 100 | 17.5 | 2.5 | 138 | 5.7 |
| 101-125 | 125 | 100 | 17.5 | 2.5 | 141 | 5.9 |
| 101-160 | 160 | 100 | 17.5 | 2.5 | 146 | 6.0 |
| 101-200 | 200 | 100 | 17.5 | 2.5 | 151 | 6.2 |
| 101-250 | 250 | 100 | 17.5 | 2.5 | 157 | 6.5 |
| 101-280 | 280 | 75 | 17.5 | 2.5 | 162 | 6.6 |
| 101-315 | 315 | 75 | 17.5 | 2.5 | 167 | 6.9 |
| 101-400 | 400 | 75 | 17.5 | 2.5 | 177 | 7.2 |
This product is durable and powerful.
