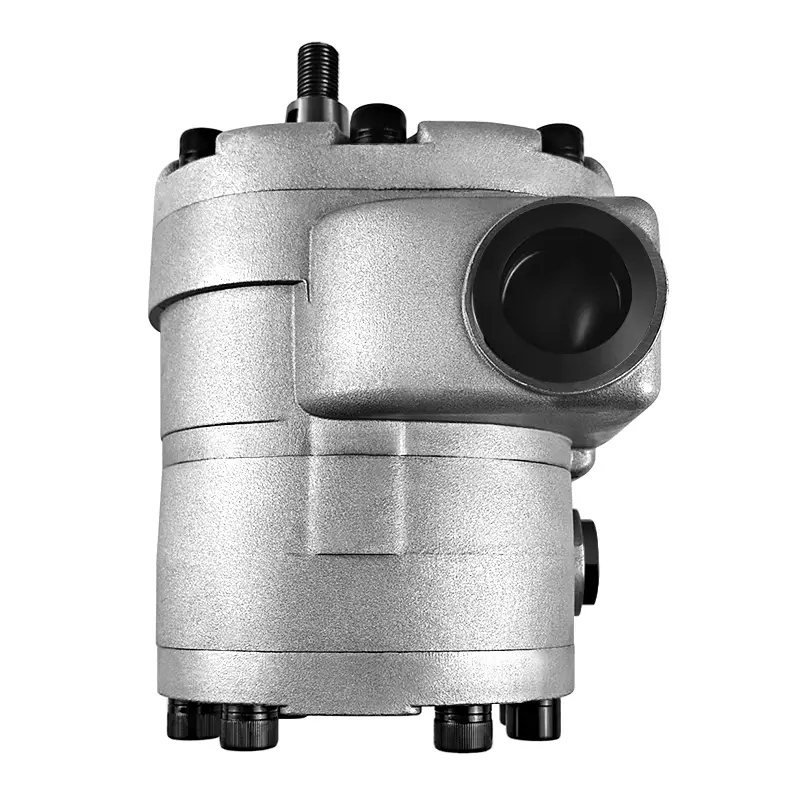

UTB H801 H8-01 Hydraulic Pump Gear Pump For UTB 650 Tractor
UTB H801/H8-01 hydraulic gear pump is a high-performance core component designed for tractor hydraulic systems, with excellent design and reliable performance. The product adopts precision gear meshing technology to ensure smooth and efficient oil delivery, while having excellent durability and wide compatibility to meet operational needs.
|
Woodruff key (5x7.5x19) |
1 pc |
|
Hexagon thin nut M14x15 (opposite side 21, thickness 7, black) |
1 pc |
|
Standard spring washer 14(GB/T93-1987,black) |
1 pc |
|
Plastic net(25x45) |
1 pc |
|
0-ring 34x2.65(NBR) |
1 pc |
Product details
Product features
◉ Specially used: H801/H8-01 hydraulic gear pump is specially used for UTB650 tractor. As the core component of its hydraulic system, it provides power transmission support.
◉ Efficient power transmission: Adopts precision gear meshing technology to ensure smooth and efficient oil delivery, adapts to the hydraulic requirements of UTB series tractors, and improves operating efficiency.
◉ Durability: The gears are quenched at high temperature to improve wear resistance and extend service life.
◉ Modular structure design: Easy to disassemble and assemble.
◉ Stability and reliability: After rigorous testing, it can still operate stably under high pressure conditions, ensuring long-term and reliable operation of the tractor hydraulic system.
Specifications
|
Main Performance Parameters |
|
|
Displacement (ml/r) |
22+11ml/r |
|
Rated RPM (r/min) |
150r/min |
|
Front Pump Rated Pressure (MPa) |
12MPa |
|
Rear Pump Rated Pressure (MPa) |
5MPa |
|
Rear Pump Controlled flow Rate |
9.5-12L/min@1500rpm |
|
Rear Pump Max. Pressure (MPa) |
8MPa |
|
Direction of Rotation |
Clockwise (From the shaft end) |
Drawing
