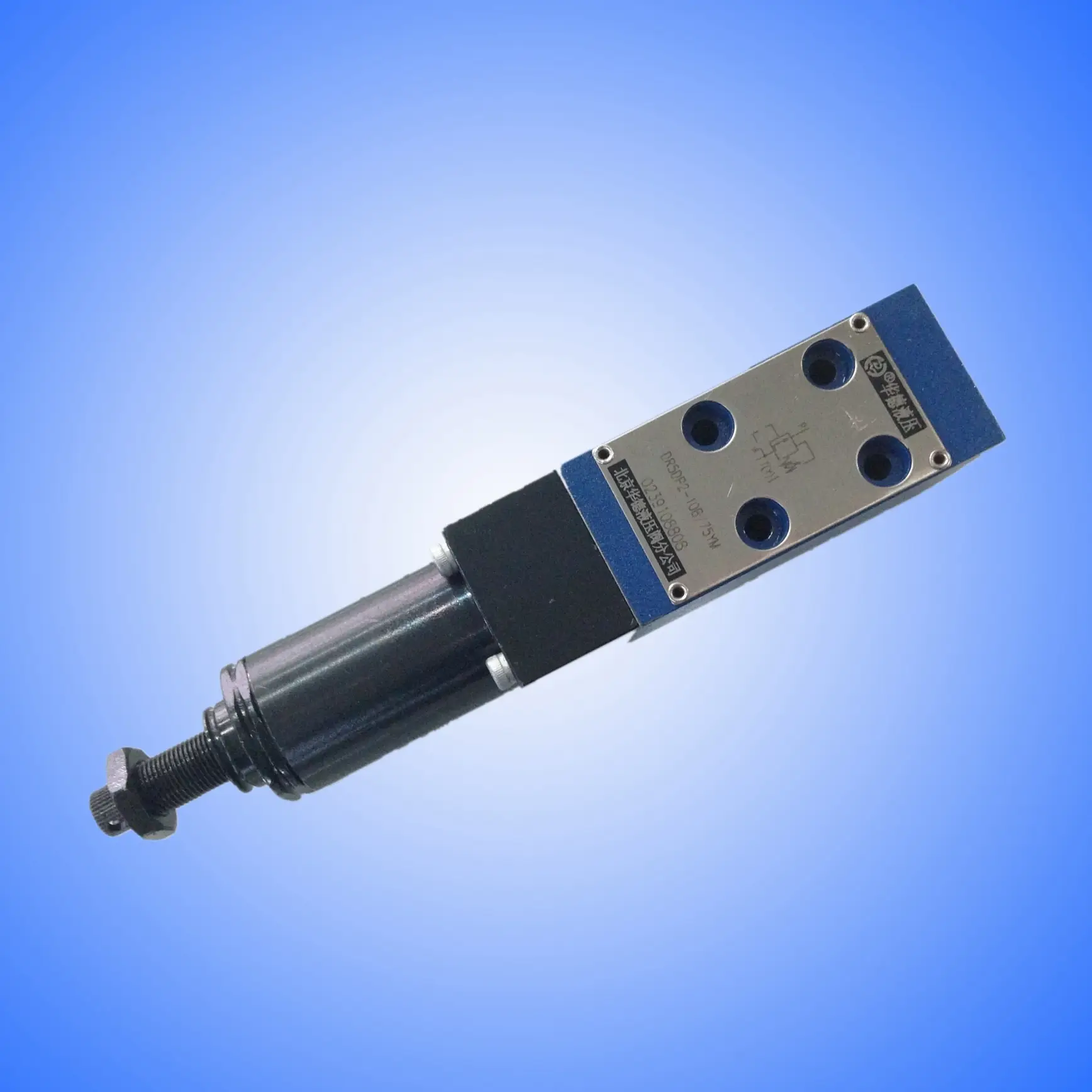

Pressure Reducing Valve Direct Operated Type DR5DP
- 1.Subplate mounting
- 2.5 pressure ratings；4 adjustment elements; Rotary knob,
- 3.Set screw with hexagon and protective cap
- 4.Lockable rotary knob with scale, Rotary knob with scale
- 5.Check valve, optional,Porting pattern to DIN 24 340, form D.ISO5781 and CETOP-RP 121H
ChangJia is designed based on design standards.
Product Description
| BEIJING HUADE HYDRAULIC INDUSTRIAL GROUP CO.,LTD. | Pressure reducing valve, direct operated,type DR 5 DP | RE 26580/12.2004 | ||
| Size 5 | up to 31.5MPa | up to 15L/min | Replaces： RE26580/05.2001 | |
Functional section
The valve type DR5 DP is a 3-way direct operated pressure reducing valve with a pressure relief function on the secondary side.
It is used to reduce the system pressure. The secondary pressure is set by the pressure adjustment element (4). At rest, the valve is normally open and the pressure fluid can flow unhindered from port P to port A.
The pressure in port A is at the same time, via the control line (6), present at the spool area opposite to the compression spring (3).
When the pressure in port A exceeds the pressure level set at compression spring (3), the control spool (2) moves into the control position and holds the set pressure in port A constant
The control and pilot oil are taken from port A via control line (6).
If the pressure in port A still increases due to external forces on the actuator, the control spool(2) moves still further towards the compression spring(3).
This causes a flow path to be opened at port A via control land (8) on the control spool (2) to the tank. Sufficient pressure fluid then flows to lank to prevent any further rise in pressure.
The spring chamber is always drained to tank externally via port T (Y).
