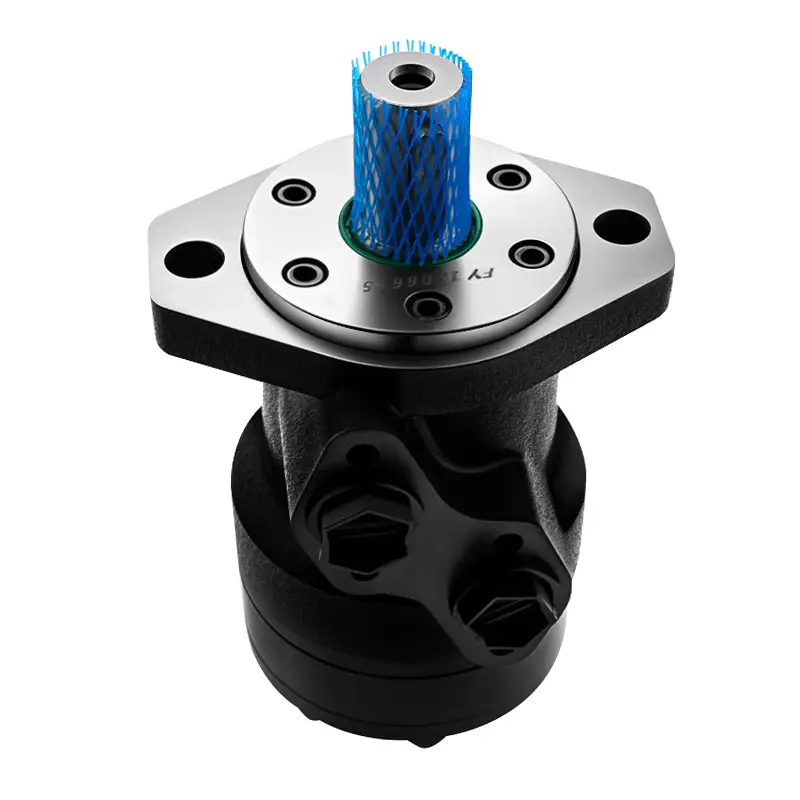

OMR/BMR Series hydraulic orbital motor
BMR/OMR series hydraulic motor is a kind of shaft distribution motor, using the design of needle tooth rotor pair, low starting pressure, high efficiency, good retention. Ideal for Construction machinery, agricultural machinery and transportation.
|
Continuous pressure |
Max.value of operating motor continuously. |
||
|
Intermittent pressure |
Max.value of operating motor in 6 seconds per minute. |
||
|
Peak pressure |
Max.value of operating motor in 0.6 second per minute. |
||
|
The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
|||
Application Areas
Product features
◉ High-Pressure Shaft Seal: Withstands high back pressure, enabling flexible series or parallel installation.
◉ Smooth Forward/Reverse Operation: Easy switching and stable running speed.
◉ Linkage shaft specially designed: Significantly extends motor service life.
◉ Optimized for Medium Loads: Delivers high efficiency and excellent cost-effectiveness.
◉ Compact & Lightweight: Space-saving design for simple and easy installation.
Specifications
|
TYPE |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
BMR |
|
|
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
OMR |
||
|
Displacement(ml/r) |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
|
|
Flow |
Continuous |
40 |
40 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Intermittent |
50 |
50 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Speed |
Continuous |
755 |
630 |
750 |
600 |
475 |
375 |
300 |
240 |
190 |
160 |
110 |
|
Intermittent |
970 |
790 |
940 |
750 |
600 |
470 |
375 |
300 |
240 |
200 |
128 |
|
|
Pressure |
Continuous |
14 |
14 |
17.5 |
17.5 |
17.5 |
16.5 |
13 |
11 |
8.5 |
8.5 |
8 |
|
Intermittent |
17.5 |
17.5 |
20 |
20 |
20 |
20 |
17.5 |
14 |
11.5 |
11.5 |
9 |
|
|
Torque |
Continuous |
100 |
124 |
190 |
240 |
292 |
363 |
358 |
352 |
360 |
420 |
464 |
|
Intermittent |
126 |
156 |
220 |
280 |
340 |
430 |
448 |
470 |
470 |
548 |
580 |
|
|
The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
||||||||||||
