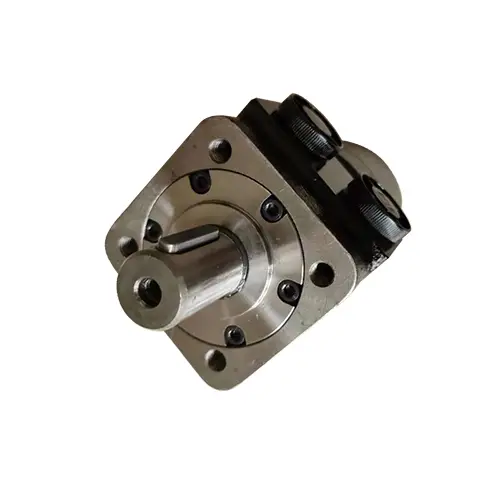

OMPH/BMPH series special for replace Original Eaton char-lynn H series hydraulic motor.
OMPH/BMPH series special for replace Original Eaton char-lynn H series hydraulic motor.
allows to gain an advantage in the competition.
Description
OMPH/BMPH series special for replace Original Eaton char-lynn H series hydraulic motor.
Characteristic :
1, Advanced manufacturing design for the Gerotor gear set, which provide high starting torque, high efficiency and long life
2, Motors have high pressure shaft seals which can be used in Parallel or Series
3, Smooth running over the entire speed range
Advantages:
- Very tough motor for demanding applications
- Can be used in a multitude of industries
- Very easy/flexible to integrate in a system• Very tough motor for demanding applications
- Can be used in a multitude of industries
- Very easy/flexible to integrate in a system
Specification:
OMPH BMPH hydraulic motor can perfect replace below Original Eaton char-lynn hydraulic motor:
| 101-1700 | 101-1033 | 101-1701 | 101-1034 | 101-1035 | 101-1702 | 101-1703 | 101-1036 |
| 101-1704 | 101-1025 | 101-1705 | 101-1034 | 101-1027 | 101-1706 | 101-1707 | 101-1028 |
| 101-1721 | 101-1081 | 101-1705 | 101-1082 | 101-1083 | 101-1723 | 101-1724 | 101-1084 |
| 101-1725 | 101-1073 | 101-1726 | 101-1074 | 101-1075 | 101-1727 | 101-1728 | 101-1076 |
| 101-1749 | 101-1009 | 101-1750 | 101-1010 | 101-1751 | 101-1752 | 101-1012 | 101-1013 |
| 101-1753 | 101-1009 | 101-1754 | 101-1002 | 101-1755 | 101-1756 | 101-1004 | 101-1005 |
| 101-1761 | 101-1057 | 101-1762 | 101-1058 | 101-1059 | 101-1872 | 101-1763 | 101-1060 |
| 101-1764 | 101-1049 | 101-1765 | 101-1050 | 101-1051 | 101-1766 | 101-1767 | 101-1052 |
Applications: • Mobile equipment • Snow Removal, moving • Spayer, trencher • Wood products
| TYPE | BMPH OMPH 36 | BMPH OMPH 50 | BMPH OMPH 80 | BMPH OMPH 100 | BMPH OMPH 125 | BMPH OMPH 160 | BMPH OMPH 200 | BMPH OMPH 250 | BMPH OMPH 315 | BMPH OMPH 400 | BMPH OMPH 500 | |
| Displacement(ml/r) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Speed (RPM) | Continuous | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| Intermittent | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Torque (N*.m) | Continuous | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| Intermittent | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Output (KW) | Continuous | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| Intermittent | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Pressure (MPA) | Continuous | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| Intermittent | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Flow (LPM) | Continuous | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Intermittent | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.7 | 6.9 | 7.4 | 8 | |
| 1.Continuous pressure:Max.value of operating motor continuously. 2.Intermittent pressure:Max.value of operating motor in 6 seconds per minute. 3.Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||||||||||||
The product is able to meet the exact needs of clients and is now widely used in the global market.
