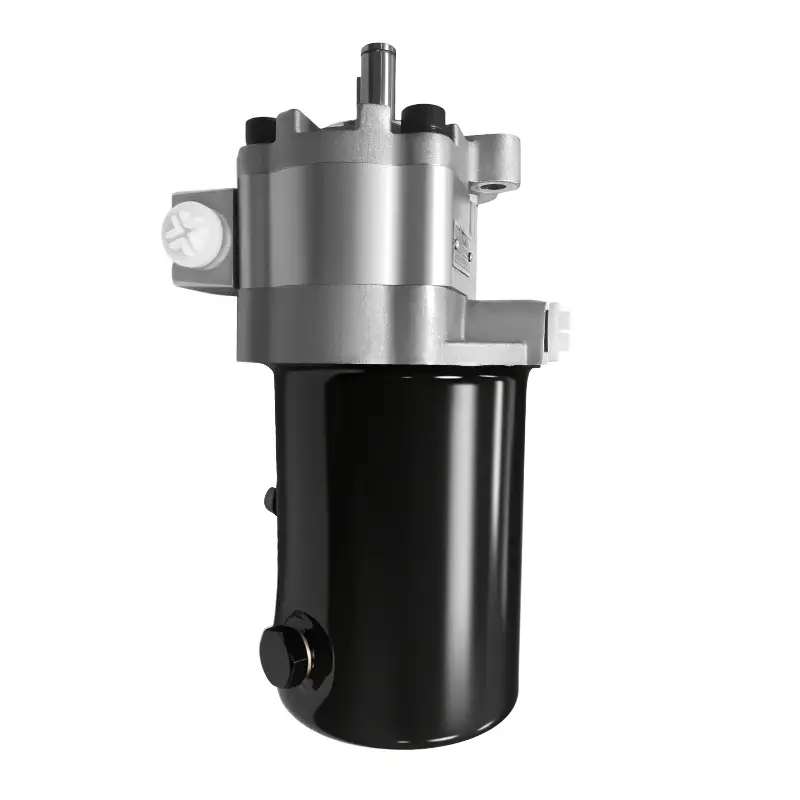

MF897147M92 MF285 Hydraulic Pump Power Steering Pump For Massey Ferguson Tractor
MF897147M92 MF285 hydraulic pump is fit for Massey Ferguson tractors. Its core advantages include: high efficiency and stability, strong durability, and precise adaptability. The stable hydraulic power is essential for various agricultural applications.
|
Displacement (ml/r) |
6.2ml/r |
|
Max pressure (MPa) |
10MPa |
|
Rated speed (r/min) |
1500r/min |
|
Speed range(r/min) |
600-3000r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) |
Product details
Product features
◉ High efficiency and stability, strong durability, reliable operation, and low failure rate.
◉ Small size and simple structure.
◉ Inlet/outlet oil ports are equipped with standard O-ring seals, anti-leakage design.
◉ Inlet/outlet oil ports are equipped with dust covers.
◉ Air tightness test (using medium immersion method): Under 0.2MPa air pressure, maintain for 15 seconds without leakage.
Specifications
| Main Performance Parameters | |
|
Displacement (ml/r) |
6.2ml/r |
|
Max pressure (MPa) |
10MPa |
|
Rated speed (r/min) |
1500r/min |
|
Speed range(r/min) |
600-3000r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) |
Drawing
