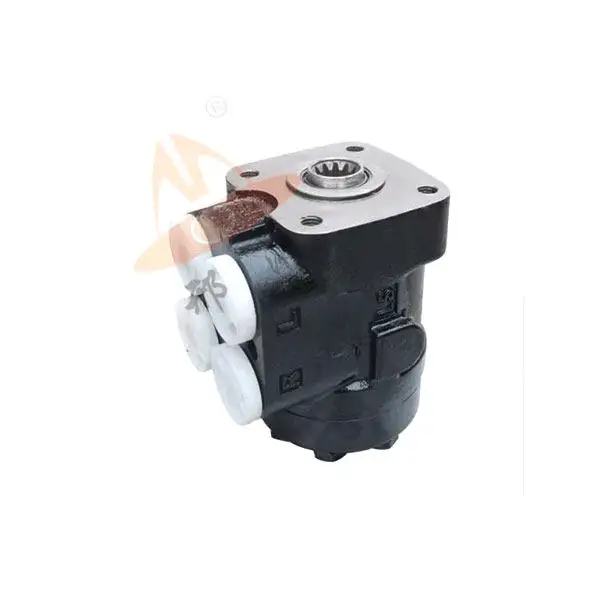

Hydraulic Steering Unit 101 OSPC OSPB HKUS 060 Series
- 1. 101 series hydraulic steering unit inherits the steering function of BZZ from structure to principle.
- 2. The main features of this series of steering gear are that safety valve, two-way overload valve, two-way refueling valve and one-way inlet valve are all integrated into the steering gear housing, no need to connect the valve blocks, more convenient to
Our professional quality control team and authoritative third parties have conducted a serious and rigorous review of product quality.
Product Description
Fei Yue’s hydraulic steering unit have 101S, OSPC, OSPB, HKUS, 060, 101S-5E, 102S, 103S, BZZ-B etc.
Function: increase the force transmitted from the steering wheel to the steering transmission mechanism and change the force Delivery direction.
Application: widely used in low-speed and heavy-duty vehicles such as agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, engineering machinery and mining machinery.
The driver can achieve greater steering force control with a smaller operating force, and the performance is safe and reliable, and the operation is light and flexible.
Product list :fei yue catalogue 2021
101 TECHNICAL DATA
| TYPE | Displacement | Max.input speed | Max.input Pressure | Max.cont.Back. Pressure | Length | Weight |
| (ml/r) | (rpm) | (Mpa) | (Mpa) | (mm) | (kg) | |
| 101-50 | 50 | 100 | 17.5 | 2.5 | 131 | 5.4 |
| 101-63 | 63 | 100 | 17.5 | 2.5 | 133 | 5.5 |
| 101-80 | 80 | 100 | 17.5 | 2.5 | 135 | 5.6 |
| 101-100 | 100 | 100 | 17.5 | 2.5 | 138 | 5.7 |
| 101-125 | 125 | 100 | 17.5 | 2.5 | 141 | 5.9 |
| 101-160 | 160 | 100 | 17.5 | 2.5 | 146 | 6 |
| 101-200 | 200 | 100 | 17.5 | 2.5 | 151 | 6.2 |
| 101-250 | 250 | 100 | 17.5 | 2.5 | 157 | 6.5 |
| 101-280 | 280 | 75 | 17.5 | 2.5 | 162 | 6.6 |
| 101-315 | 315 | 75 | 17.5 | 2.5 | 167 | 6.9 |
| 101-400 | 400 | 75 | 17.5 | 2.5 | 177 | 7.2 |
