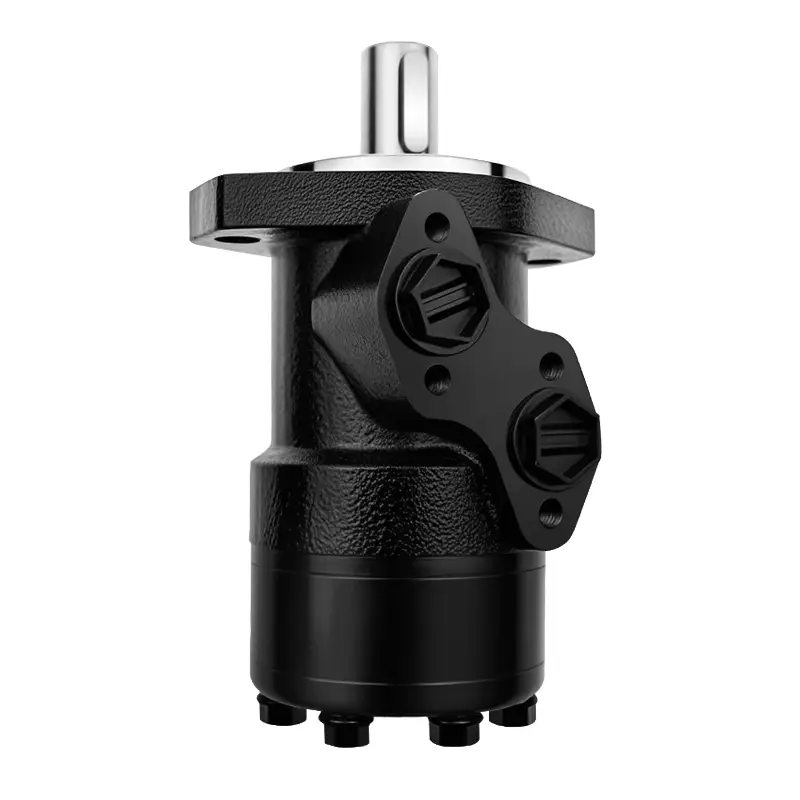

Hydraulic Motor Replacement for Danfoss OMP/BMP Series
The BMP/OMP motor is a small volume and economical type of shaft-distributed motor, which adopts the integral rotor, compact structure, light weight and high power density. It can be widely used on Agricultural machinery,Construction Industry,Light industry and Fisheries etc.
|
Continuous pressure |
Max. value of operating motor continuously. |
||
|
Intermittent pressure |
Max. value of operating motor in 6 seconds per minute. |
||
|
Peak pressure |
Max. value of operating motor in 0.6 second per minute. |
||
|
The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
|||
Application Areas
Product features
◉ Compact & Lightweight: Engineered for minimal space and weight while delivering high power density.
◉ Robust Shaft Seal: The BMP/OMP type orbital motor features a heavy-duty seal design reliably handling high-pressure applications, suitable for parallel or series configurations.
◉ Precise Control: Offers smooth and effortless control over shaft rotation direction and speed.
◉ Optimized Efficiency: The motor provides the ideal balance of performance and cost-effectiveness for medium-duty applications.
Specifications
|
TYPE |
BMP |
BMP |
BMP |
BMP |
BMP |
BMP |
BMP |
BMP |
BMP |
BMP |
|
|
OMP |
OMP |
OMP |
OMP |
OMP |
OMP |
OMP |
OMP |
OMP |
OMP |
||
|
Displacement(ml/r) |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
|
|
Flow |
Continuous |
45 |
45 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Intermittent |
50 |
50 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Speed |
Continuous |
879 |
720 |
740 |
589 |
475 |
370 |
296 |
237 |
189 |
149 |
|
Intermittent |
975 |
755 |
827 |
673 |
594 |
463 |
370 |
297 |
236 |
185 |
|
|
Pressure |
Continuous |
12.5 |
12.5 |
12.5 |
12.5 |
12.5 |
12.5 |
11 |
11 |
11 |
10 |
|
Intermittent |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
14 |
12.5 |
10.5 |
|
|
Torque |
Continuous |
81 |
101 |
129 |
161 |
202 |
245 |
286 |
360 |
406 |
435 |
|
Intermittent |
108 |
134 |
171 |
213 |
268 |
342 |
390 |
456 |
505 |
533 |
|
|
The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
|||||||||||
