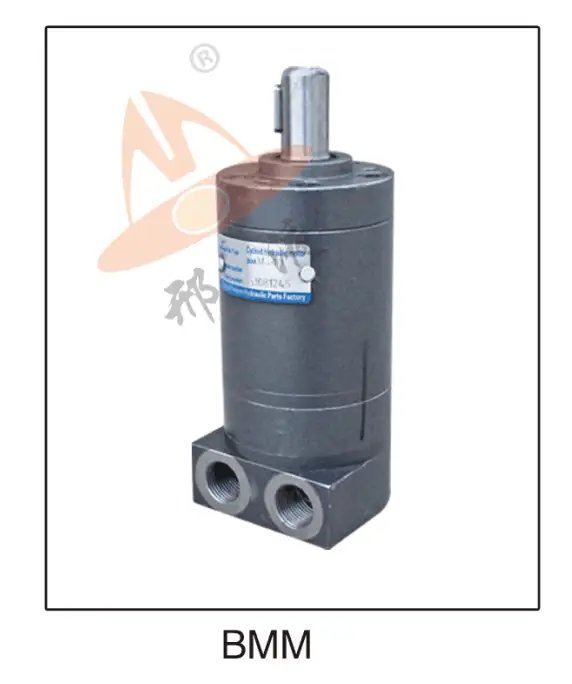

Hydraulic Motor BMM/OMM series
- The BMM/OMM series orbital hydraulic motor is a micro shaft distribution motor that can be installed in a small space. It adopts integral rotary stator, 4/5 tooth structure, compact structure, light weight and high power density. Its characteristics:
- The whole type of rotary stator adopts the world's most advanced processing technology to ensure the small size, high efficiency, high speed and long life.
- The shaft seal can bear high pressure and can be used in series or in parallel.
- Advanced structural design and high power density.
- Product MOQ 100 PCS/order
This product is recognized as the foremost one compared to other products in the industry.
Description
The BMM/OMM gear set, shaft distribution fl ow, hydraulic motors are a compact, highly effi cient, low speed-high torque design which can be used in either parallel or series systems.
These Fei Yue low weight advanced construction design motors are manufactured in accordance with the requirements of the European and American quality system.
BMM/OMM End Port Installation Data
BMM/OMM Side Port Installation Data
BMM Drive Shaft Data
Main Specification:
| TYPE | BMM8 | BMM12.5 | BMM20 | BMM32 | BMM40 | BMM50 | |
| Displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
|
Speed（rpm） | Rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Continuous | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| Intermittent | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
|
Torque（N.M） | Rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Continuous | 11 | 16 | 25 | 40 | 45 | 46 | |
| Intermittent | 15 | 23 | 35 | 57 | 70 | 88 | |
| Peak value | 21 | 33 | 51 | 64 | 82 | 100 | |
|
Power（KW） | Rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Continuous | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| Intermittent | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Pressure difference（MPA） | Rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Continuous | 10 | 10 | 10 | 10 | 9 | 7 | |
| Intermittent | 14 | 14 | 14 | 14 | 14 | 14 | |
| Peak value | 20 | 20 | 20 | 16 | 16 | 16 | |
|
Flow（L/min） | Rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Continuous | 16 | 20 | 20 | 20 | 20 | 20 | |
| Intermittent | 20 | 25 | 25 | 25 | 25 | 25 | |
Replaceable Orbital Motors Cross Reference Table
| Fei Yue |
DANFOSS | M+S | EATON | ROSS | WHITE |
PARKER | SAM | BOSCH |
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | RECROTH | ||
| BMM | OMM | MM MLHK | J SERIES |
|
|
| BGM | MGX |
| BM1/BMP | OMP DH | MP HP | H SERIES | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BM2/BMR | OMR DS OMEW | MR HR MLHRW,RW | S,T SERIES W SERIES | MB | WR RE | TF | BR | MGR GMR |
| BM4/BMH | OMH | MH MLHH HW HWF |
| ME | RE | TG |
|
|
| BM5/BMS | OMS | MS MSY MLHS | 2000 SERIES | ME | RE | TG | HPR | MGS GMS |
| BM6/BMT | OMT TMT | MT MLHT MTM | 6000 SERIES | MJ |
|
| HT | MGT,GMT |
| BMV/OMV | OMV | MV MLHV | 10000 SERIES |
|
|
|
| MGV GMV |
