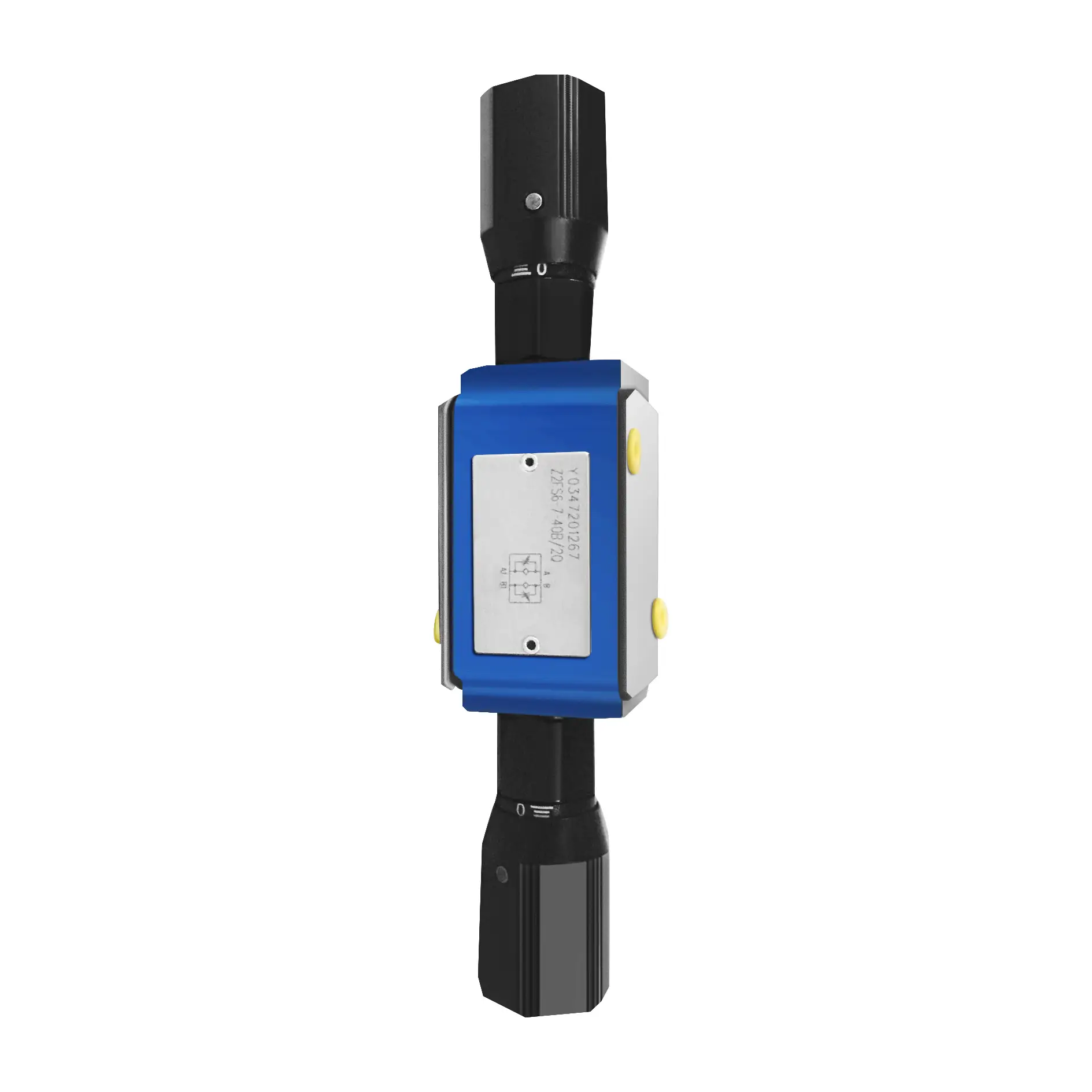

Double throttle check valve Type Z2FS Series 30 for Rexroth
- Sandwich plate design
- Porting pattem to DIN 24 340, from A,ISO 4401and CETOP-RP 121H
- Limiting of main or pilot flow with two service ports
- Meter-in or meter-out control.
Product features
◉ Sandwich plate design
◉ Porting pattem to DIN 24 340, from A,ISO 4401and CETOP-RP 121H
◉ Limiting of main or pilot flow with two service ports
◉ Meter-in or meter-out control.
Functional section
Valves type Z 2 FS are double throttle/check valves in sandwich plate design.They are used to limit main or pilot oil flow at one or two service ports.Two symmetrically arranged throttle/check valves limit flow (by means of adjustable throttle spools) in one direction and permit free return flow in the other direction.
◉ Main flow limiting: The double throttle/check valve is fitted between the directional valve and the subplate to change the speed of an actuator (main flow limiting).
◉ Pilot flow limiting: In the case of pilot operated directional valves, the double throttle/check valve may be used as a pilot choke adjustment (pilot flow limiting). In this case, it is fitted between the main valve and the pilot valve.
Technical data
(for applications outside these parameters, please consult us!)
|
Size |
6 |
16 |
22 |
|
Maximum flow（L/min） |
80 |
250 |
350 |
|
Maximum working pressure（MPa） |
31.5 |
35 |
|
|
Pressure fluid |
Mineral oil (for NBR seals) or Phosphate ester (for FKM seals) |
||
|
Viscosity range（mm²/s） |
10 to 800 |
||
|
Fluid temperature range（°C） |
-30 to +80 |
||
|
Notice |
||
|
The fluid must be filtered. Minimum filter fineness is 20 μm. |
||
|
The tank must be sealing up and an air filter must be installed on air entrance. |
||
|
Products without subplate when leaving factory, if need them, please ordering specially. |
||
|
Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book. |
||
|
Roughness of surface linked with the valve is required to Ra 0.8 μm. |
||
|
Surface finish of mating piece is required to 0.01/100mm. |
Characteristic curves
(measured at v = 41 mm² and t = 50°C)
