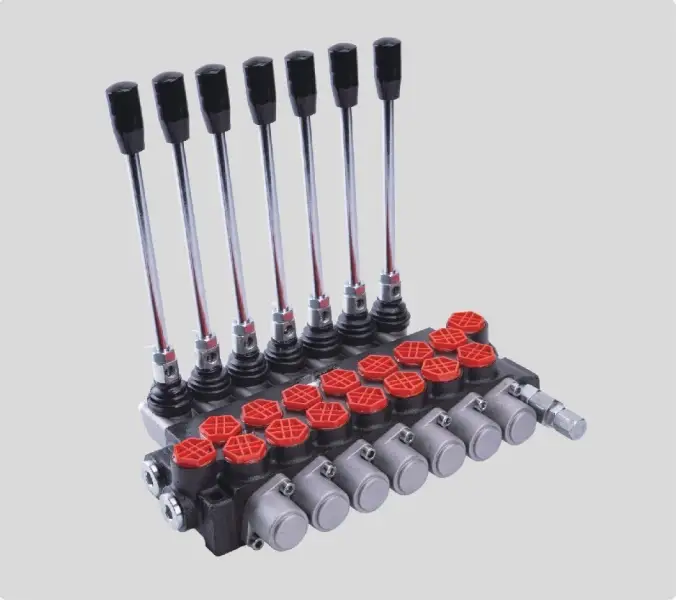

DCV Directional Control Valve With High Pressure For Drilling Machine1

Product Details

Ordering code:

①　Flow: 20，40, 45, 60, 100, 140, 200
②　Number of spools: 1-12
③　Inlet section type:see table (1)
④　Relief valve set pressure: 100- -315 bar
⑤　Inlet port size:see table (2)
⑥　Spool type: see table (3)
⑦　Handle side arrangement: see table (4)
⑧　Spool cap side arrangement:see table (5)
⑨　Working section arrangement: see table (6)
⑩　10Work port size:see table (2)
⑪　Outlet section type: see table (7)
⑫　Outlet port size: see table (2)

Product Description

DCV directional control valve is designed for high pressure hydraulic system such as drilling machine, sanitation, etc.
Auxiliary valve: over-load valve, anti-cavitation valve,combined valve, etc. (not for DCV40-45)
Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.
Structure: monoblock, sectional.
Carry-over port as hydraulic source for other parts.

Ordering Code

1. ①　Flow: 20，40, 45, 60, 100, 140, 200
   ②　Number of spools: 1-12
   ③　Inlet section type:see table (1)
   ④　Relief valve set pressure: 100- -315 bar
   ⑤　Inlet port size:see table (2)
   ⑥　Spool type: see table (3)
   ⑦　Handle side arrangement: see table (4)
   ⑧　Spool cap side arrangement:see table (5)
   ⑨　Working section arrangement: see table (6)
   ⑩　10Work port size:see table (2)
   ⑪　Outlet section type: see table (7)
   ⑫　Outlet port size: see table (2)
