Introduction

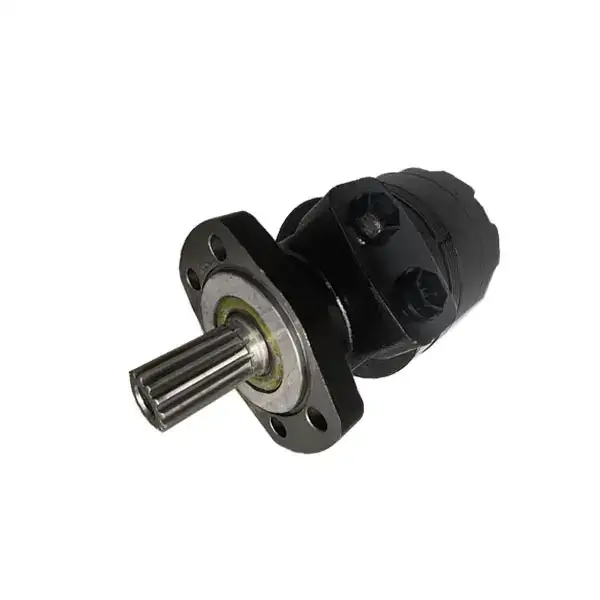

BMER series orbital hydraulic motor is an advanced hydraulic motor with high-speed distribution structure. The series of motors use inlaid-column rotary stator . It has the characteristics of high working pressure, high working efficiency, good stability at low speed, high volume efficiency, good efficiency and long working life. On the basis of the standard structure, the multi-functional variant design can be designed according to the user's needs.

Its characteristics are:

The advanced design of rotor stator parameters has the advantages of low starting pressure, high efficiency and good retention.

High working pressure and high output torque. With needle roller bearing structure, bearing axle and strong radial load capacity, the motor can directly drive the working mechanism and expand the scope of use.

Advanced high-speed flow distribution structure ensures high accuracy of motor flow distribution, strong automatic compensation ability after wear, high volume efficiency, long life of motor, stable speed of motor and stable load speed characteristics.

The valve distribution system has the characteristics of low leakage. The rotating speed of the valve plate is six times of the output speed, which makes the motor have high flow distribution accuracy, strong automatic compensation ability after wear and tear, and ensures high volume efficiency. The motor has the characteristics of smooth movement at low speed.

Main Specification

*Rated speed and torque refer to the output value under rated flow and pressure.

*Continuous value refers to the maximum value that the displacement motor can work continuously.

*Intermittent value refers to the maximum value of the displacement motor working for 6 seconds in a minute.

*Peak value is the maximum of 0.6 seconds in a minute for the displacement motor.

BMER Installation
