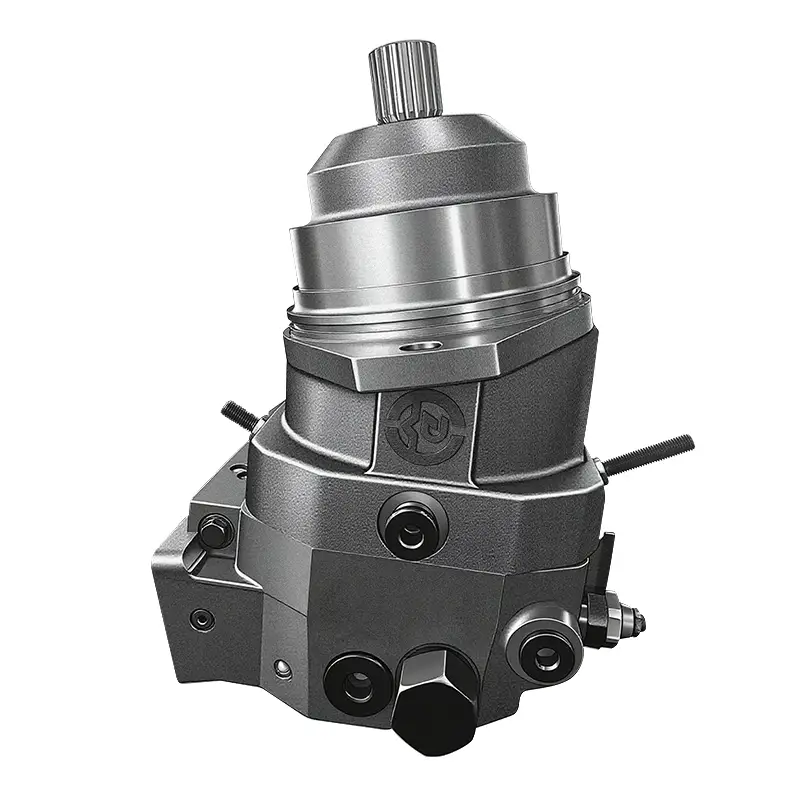

A6VE plug-in oblique axis variable motor
The A6VE plug-in swashplate variable motor has a cartridge-type swashplate construction and is suitable for hydrostatic drives in both closed and open circuits. Its compact design and easy installation allow it to be inserted into a mechanical gearbox without the need for complicated configurations.
The A6VE plug-in swash-axis variable motor is particularly suitable for travelling machines and industrial applications where high speeds and high torques are required. Its wide control range allows it to excel in a wide range of applications.
Product features
◉ Long life and low noise: Bearing system with long life, good starting characteristics, low inertia and low noise.
◉ Infinitely adjustable: Displacement can be infinitely changed from Vg max to Vg min=0 to meet high speed and torque requirements.
◉ Output characteristics: The output speed depends on the flow rate of the pump and the displacement of the motor, the output torque increases with the pressure difference between the high pressure side and the low pressure side as well as with the displacement.
◉ Superior performance: The output speed depends on the flow rate of the pump and the displacement of the motor, and the output torque increases with the pressure difference between the high-pressure side and the low-pressure side and with the increasing displacement.
◉ Convenient installation: The integrated design within the mechanical gearbox and the center flange mounting design of the housing allows the motor to be simply inserted into the machine's gearbox for easy installation.
Specifications
|
Size |
|
|
55 |
80 |
107 |
160 |
|
Displacement |
Vgmax |
ml/r |
54.8 |
80 |
107 |
160 |
|
Vgmin |
ml/r |
15.8 |
23 |
30.8 |
46 |
|
|
Max.Permissible.Swept volume |
Qgmax |
1/min |
206 |
268 |
321 |
424 |
|
Max.speeds |
Nmax at Vmax |
r/min |
3750 |
3350 |
3000 |
2650 |
|
Nmax at Vg |
r/min |
5000 |
4500 |
4000 |
3500 |
|
|
Torque constants |
MX at Vgmax |
Nm/MPa |
8.701 |
12.75 |
16.97 |
25.41 |
|
MX at Vgmin |
Nm/MPa |
2.511 |
3.73 |
4.9 |
7.35 |
|
|
Max.torque |
Mmax at Vgmax |
Nm |
304 |
446 |
594 |
889 |
|
Mmax at Vgmin |
Nm |
88 |
130 |
171 |
257 |
|
|
Max.output power(at 35MPa and Q) |
|
kW |
120 |
156 |
187 |
247 |
|
Moment |
|
kgm² |
0.0042 |
0.008 |
0.0127 |
0.0253 |
|
Weight |
|
kg |
26 |
34 |
45 |
64 |
