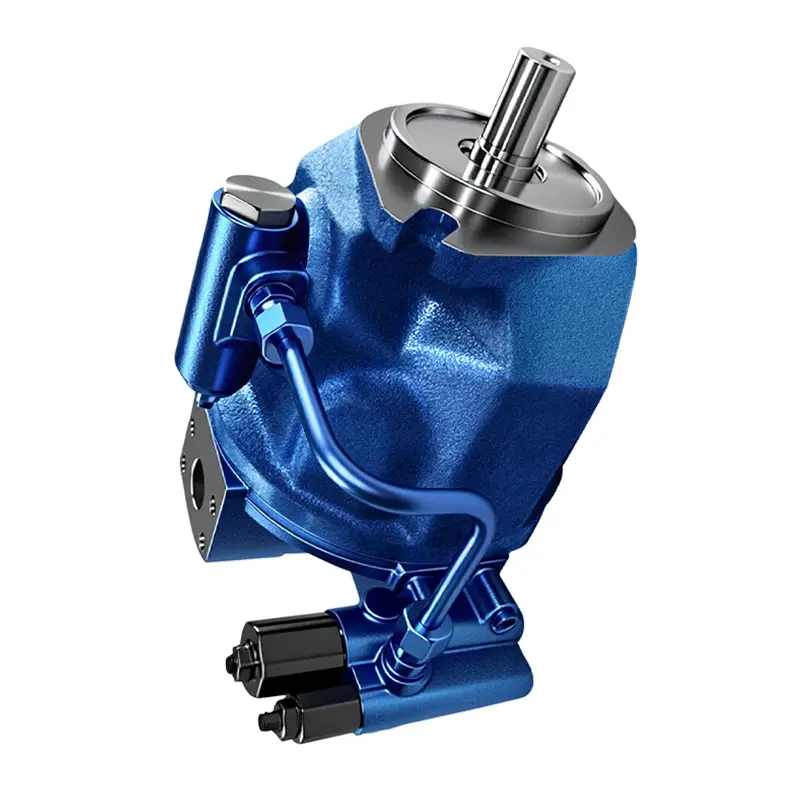

A10V(S)O Open shaft variable displacement pump

This series of pumps adopts the open circuit swash plate axial piston variable pump design, with a variety of control methods and excellent performance characteristics.

A10V motors are widely used in construction machinery, such as excavators, loaders, etc., and are suitable for hydraulic systems that require high pressure and flow.

Inquiry

Write a Review

Product features

◉ Flow rate infinitely adjustable: Flow rate is proportional to the drive speed and displacement, stepless variable control is realized by adjusting the swashplate inclination, fast response speed.

◉ Energy efficient design: Constant pressure/constant flow control mode saves more than 30% energy compared to dosing pumps, significantly reducing energy consumption.

◉ High pressure load capacity: Rated working pressures up to 280 bar, peak pressures up to 350 bar for high loads.

◉ Durability and longevity: The helical disc bearing adopts ‌ hydrostatic unloading technology ‌ and is equipped with ‌FKM fluororubber seals ‌, which significantly extends its service life

◉ Excellent oil-absorbing properties: Double shell drain port design, strong anti-cavitation ability, adapt to low suction pressure environment.

Specifications

Standard components, suitable for operation in mineral oil media. Theoretical values, not considering efficiency and tolerances; data rounded:

Technical Data/Specifications		code	unit	10	18	28	45	71	100	140
Geometric displacement geometric displacement	Flow rate per revolution run-rate	Vgmax	cm³	10.5	18	28	45	71	100	140
speed1)	Vgmax	nnom	rpm	3600	3300	3000	2600	2200	2000	1800
speed1)	Vg	nmax	rpm	4320	3900	3600	3100	2600	2400	2100
flow	n0max Vgmax	qv0max	L/min	37	59	84	117	156	200	252
flow	nE=1500 rpm Vgmax	qVEmax	L/min	15	27	42	68	107	150	210
power	n0max Vgmax	P0MAX	kW	16	30	39	55	73	93	118
△p=280 bar	nE=1500 rpm Vgmax	PEmax	kW	7	12.6	20	32	50	70	98
Torque	△p=280 bar	Tmax	Nm	42	80	125	200	316	445	623
Vgmax	△p=100 bar	T	Nm	17	30	45	72	113	159	223
Rotational stiffness rotational rigidity	Shaft end S	c	Nm/rad	9200	11087	22317	37500	71884	121142	169537
	Shaft end R	c	Nm/rad		14850	26360	41025	76545
	Shaft end U	c	Nm/rad	6800
	Shaft end P	c	Nm/rad	10700	13158	25656	41232	80627	132335	188406
Rotating Assembly Moment of Inertia		JTW	kgm²	0.0006	0.00093	0.0017	0.0033	0.0083	0.0167	0.0242
Maximum Angular Acceleration2)		a	rad/s²	8000	6800	5500	4000	3300	2700	2700
Housing Capacity		V	L	0.2	0.4	0.7	1.0	1.6	2.2	3.0
Weight (Controls) Approximation		m	kg	8	12	15	21	33	45	60

Note on labeling:
1) Values apply:			2) The application scope is within the necessary minimum transmission speed and the maximum allowable transmission speed
When the absolute pressure Pas at the oil suction port S is 1 bar			It is effective for external excitation (for example: 2 to 8 times the rotation frequency of a diesel engine, and the rotation frequency of a universal joint shaft).
Vopn=16~36mm²/s In the optimum viscosity range:Vopn=16~36mm²/s			The limit value is only applicable to single-stage pumps
Application of mineral oil-based hydraulic fluids			The load capacity of the connecting components must be taken into consideration
Notes:
Exceeding the maximum allowable value or falling below the minimum allowable value may result in the loss of function, shortened service life or complete damage of the axial piston pump.
It is recommended to check the load through testing or calculation/simulation and comparison with the allowable values.
