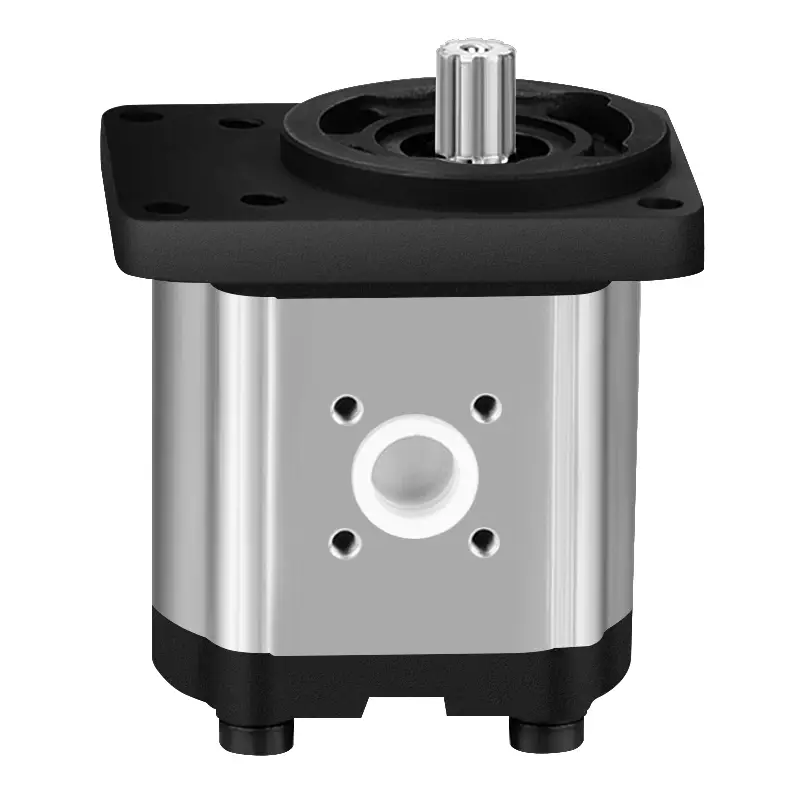

9.510.080.750 Hydraulic Pump Gear Pump for Valmet Tractors
9.510.080.750 hydraulic gear pump has a simple and reliable structure, strong environmental adaptability, and good wear resistance. It can fit for many Valmet tractor's models and is an ideal choice for improving the reliability of agricultural machinery hydraulic systems.
|
Displacement (ml/r) |
22ml/r |
Rated pressure (MPa) |
20MPa |
|
Rated speed (r/min) |
2000r/min |
Maximum speed (r/min) |
3000r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) |
Gear Tooth |
9 tooth |
Application Areas
Product features
◉ Reliable structure, wear resistance, strong environmental adaptability.
◉ Modular design (standard flange interface) for quick installation.
◉ Inlet/outlet oil ports are equipped with standard O-ring seals, anti-leakage design,
◉ Inlet/outlet oil ports are equipped with dust covers.
◉ Air tightness test (using medium immersion method): Under 0.2MPa air pressure, maintain for 15 seconds without leakage.
Specifications
| Main Performance Parameters | |||
|
Displacement (ml/r) |
22ml/r |
Rated pressure (MPa) |
20MPa |
|
Rated speed (r/min) |
2000r/min |
Maximum speed (r/min) |
3000r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) |
Gear Tooth |
9 tooth |
Drawing
