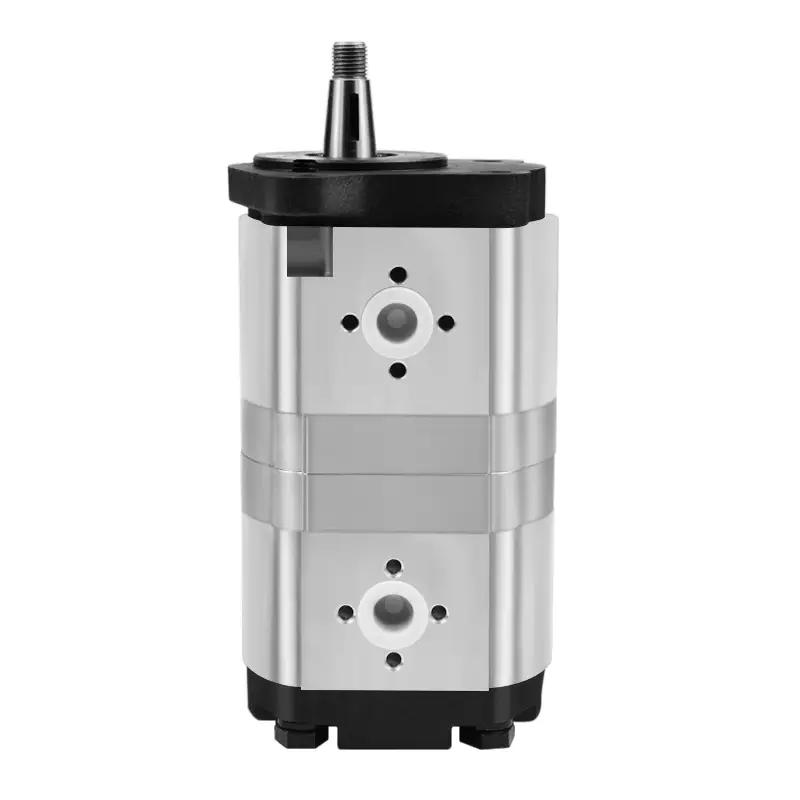

7700013742 Hydraulic Pump Gear Pump For RENAULT TRACTOR
7700013742 gear pump is fit for RENAULT tractors. Its core advantages include: high efficiency and stability, strong durability, and precise adaptability. Can improve the reliability of agricultural machinery hydraulic systems.
|
Displacement (ml/r) |
12.5+8ml/r |
Rated pressure (MPa) |
16MPa |
|
Rated speed (r/min) |
1500r/min |
Speed range(r/min) |
600-3200r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) | ||
Application Areas
Product features
◉ High efficiency and stability, strong durability, and precise adaptability.
◉ Inlet/outlet oil ports are equipped with standard O-ring seals, anti-leakage design,
◉ Inlet/outlet oil ports are equipped with dust covers.
◉ Air tightness test (using medium immersion method): Under 0.2MPa air pressure, maintain for 15 seconds without leakage.
Specifications
| Main Performance Parameters | |||
|
Displacement (ml/r) |
12.5+8ml/r |
Rated pressure (MPa) |
16MPa |
|
Rated speed (r/min) |
1500r/min |
Speed range(r/min) |
600-3200r/min |
|
Direction of rotation (from the shaft) |
Counterclockwise (left rotation) | ||
Drawing
