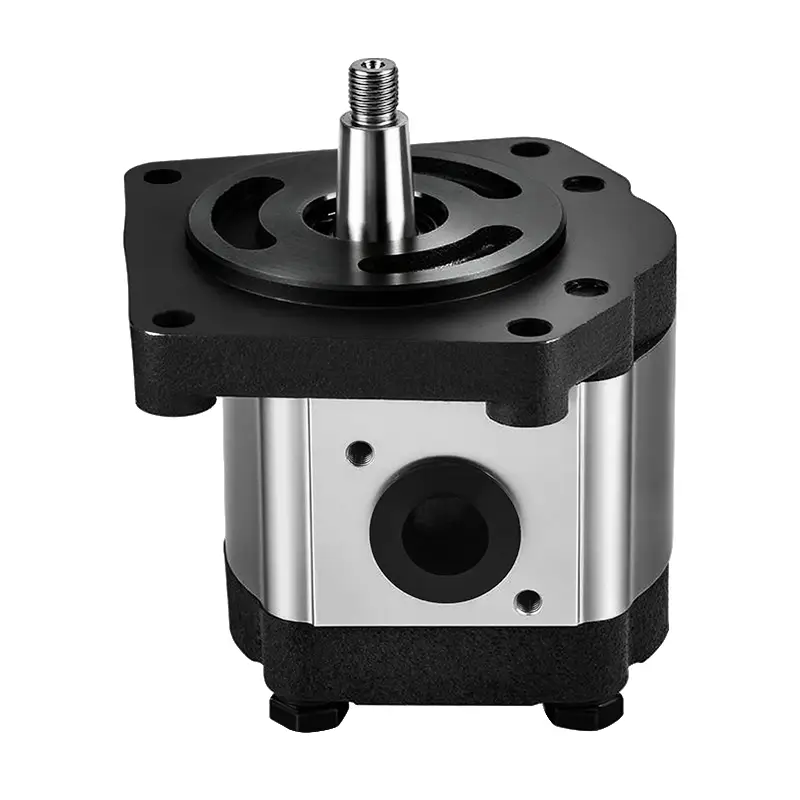

4249207M91 Hydraulic Pump Gear Pump for Massey Ferguson
The 4249207M91 hydraulic gear pump has a simple and reliable structure, strong environmental adaptability, and good wear resistance. It is a durable and efficient hydraulic pump designed for agricultural machinery. It is ideally suited for Massey Ferguson tractors, the stable hydraulic power is essential for various agricultural applications.
|
Displacement (ml/r) |
11ml/r | ||
|
Max pressure (MPa) |
21MPa | ||
|
Rotation speed (r/min) |
500-3000r/min | ||
|
Direction of rotation (from the shaft) |
Clockwise (right rotation) |
Product details
Product features
◉ Simple structure, few parts.
◉ Small size, less space.
◉ Low cost, easy maintenance.
◉ Reliable operation, low failure rate.
◉ Inlet/outlet oil ports are equipped with standard O-ring seals, anti-leakage design.
◉ Inlet/outlet oil ports are equipped with dust covers.
◉ Air tightness test (using medium immersion method): Under 0.2MPa air pressure, maintain for 15 seconds without leakage.
Specifications
| Main Performance Parameters | |
|
Displacement (ml/r) |
11ml/r |
|
Max pressure (MPa) |
21MPa |
|
Rotation speed (r/min) |
500-3000r/min |
|
Direction of rotation (from the shaft) |
Clockwise (right rotation) |
