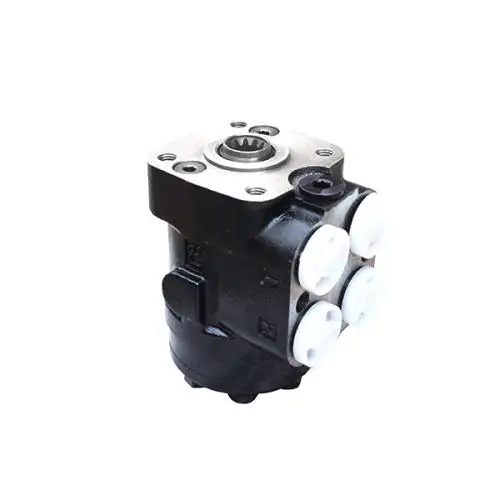

Hydraulic Steering Unit 101S OSPC Series Fei Yue
- 1. Load sensing hydraulic steering control unit is an important element in the load sensing steering system.
- 2. Together with fixed displacement pump, various displacement pump with constant pressure or load sensing pump(variable displacement pump with flow, pressure joint compensated) supplying oil, it can make up different loading sensing hydraulic steering sy
- 3. BPBS5 series can be used together with modulary mounting priority valve.
ChangJia is developed by using modern machinery and technology.
Product Description
Fei Yue’s hydraulic steering unit have 101S, OSPC, OSPB, HKUS, 060, 101S-5E, 102S, 103S, BZZ-B etc.
Function: increase the force transmitted from the steering wheel to the steering transmission mechanism and change the force Delivery direction.
Application: widely used in low-speed and heavy-duty vehicles such as agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, engineering machinery and mining machinery.
The driver can achieve greater steering force control with a smaller operating force, and the performance is safe and reliable, and the operation is light and flexible.
Product list :fei yue catalogue 2021
101S/OSP TECHNICAL DATA
TYPE | Displacement (ml/r) | Max.input speed(rpm) | Max.input Pressure(Mpa) | Max.cont.Back. Pressure(Mpa) | LS Safety valve pressure(MPa) | Overload valve pressure(MPa) | Length (mm) | Weight(kg) |
| 101S-50 | 50 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 131 | 5.4 |
| 101S-63 | 63 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 133 | 5.5 |
| 101S-80 | 80 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 135 | 5.6 |
| 101S-100 | 100 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 138 | 5.7 |
| 101S-125 | 125 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 141 | 5.9 |
| 101S-160 | 160 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 146 | 6.0 |
| 101S-200 | 200 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 151 | 6.2 |
| 101S-250 | 250 | 100 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 157 | 6.5 |
| 101S-280 | 280 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 162 | 6.6 |
| 101S-315 | 315 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 167 | 6.9 |
| 101S-400 | 400 | 75 | 17.5 | 2.5 | 6~17.5 | 12~23.5 | 177 | 7.2 |
Exquisite craftsmanship with aesthetic and elegant design style is a promise on ChangJia.
